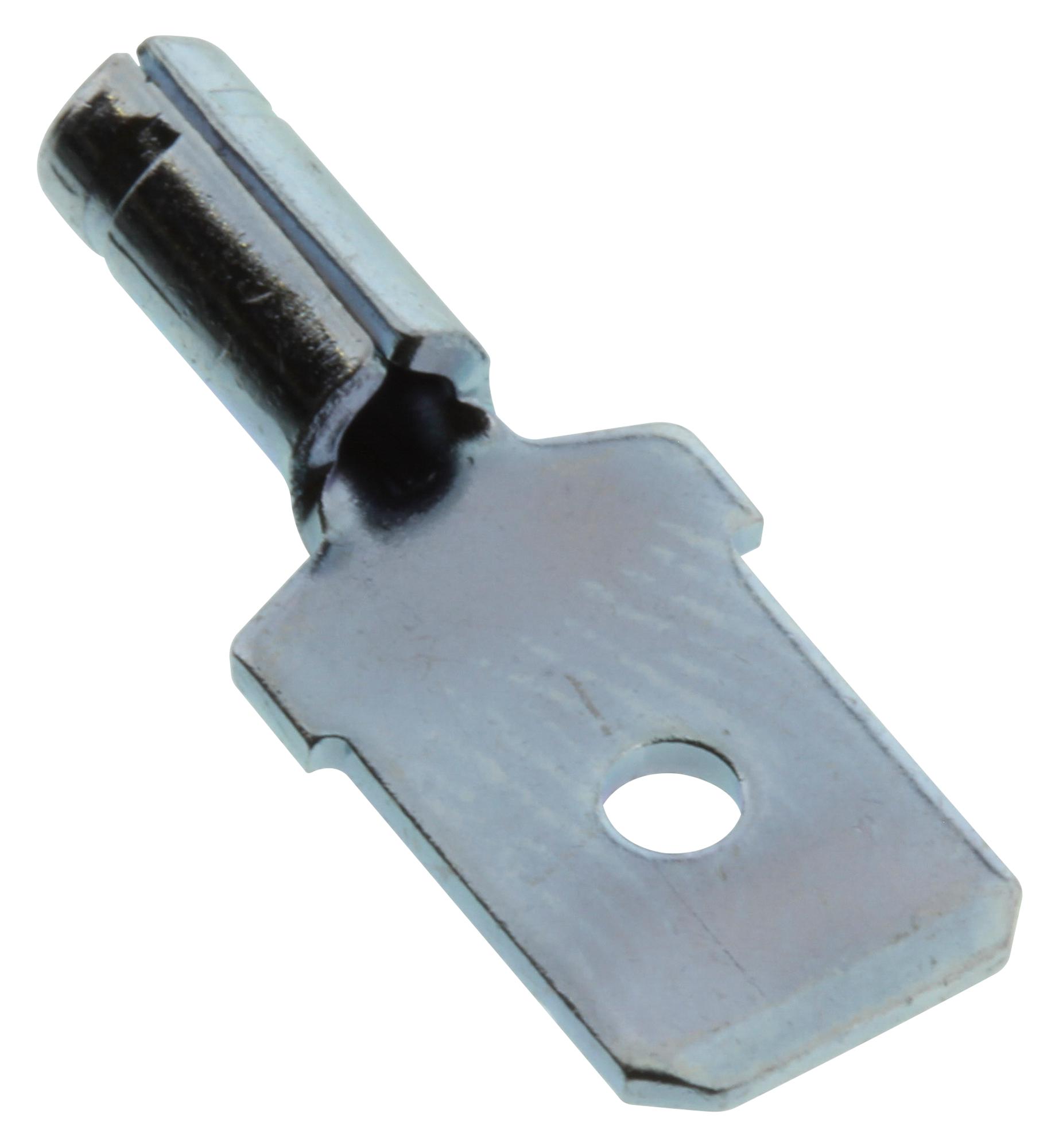

MOLEX 190220004 Quick Disconnect Terminal
The Krimptite Quick Disconnect is a versatile, low-halogen, male crimp terminal designed for 18-22 AWG wires. It features a 6.35 mm wide tab, zinc chromate plating for corrosion resistance, and is suitable for efficient crimping with standard tooling. Its durable construction makes it ideal for applications requiring reliable electrical connections, with a straight orientation and no insulation. Compliant with global RoHS directives, this quick disconnect terminal ensures safe and environmentally friendly installation, supporting various electronic and industrial wiring projects.
MOLEX 190220004 Quick Disconnect Terminal Specifications:
- Wire Range: 18-22 AWG (0.80-0.35mm²)
- Tab Width: 6.35mm
- Tab Thickness: 0.81mm
- Material - Plating Mating: Zinc Chromate
- Material - Plating Termination: Zinc Chromate
- Net Weight: 0.871g
- Operating Temperature Range: Per Wire Specification
- Crimp Height: 4.064mm
- Crimp Quality Equipment Compatibility: Yes
- Gender: Male
- Insulation: None
- Orientation: Straight
- Packaging: Bag
- Compliance: RoHS, CSA LR18689, EU ELV, UL E79133
- Material: Zinc Chromate Plated
- Application Tooling: Standard Crimp Tools (manual and pneumatic)
Buy the Buy Molex Quick Disconnection Part Number 0190220004 Online
Enhance your wiring systems with the Molex quick disconnect terminal, designed for 18-22 AWG wires with a secure 6.35 mm tab. Made with zinc chromate plating for corrosion resistance, this low-halogen terminal offers high-quality crimping performance across manual and pneumatic tools. Its straight orientation and absence of insulation make it ideal for various industrial and electronic applications. RoHS compliant and certified for safety, this terminal provides a reliable, environmentally friendly connection solution for professionals seeking durability and efficiency in their electrical installations.
Order your Molex Series19022 0190220004 quick disconnect terminal today and ensure durable, reliable electrical connections for your wiring projects.
Frequently Asked Questions
Where can I buy MOLEX 190220004?
You can click on the BUY or RFQ button to purchase 190220004 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190220004?
You can download the 190220004 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190220004?
MOLEX
