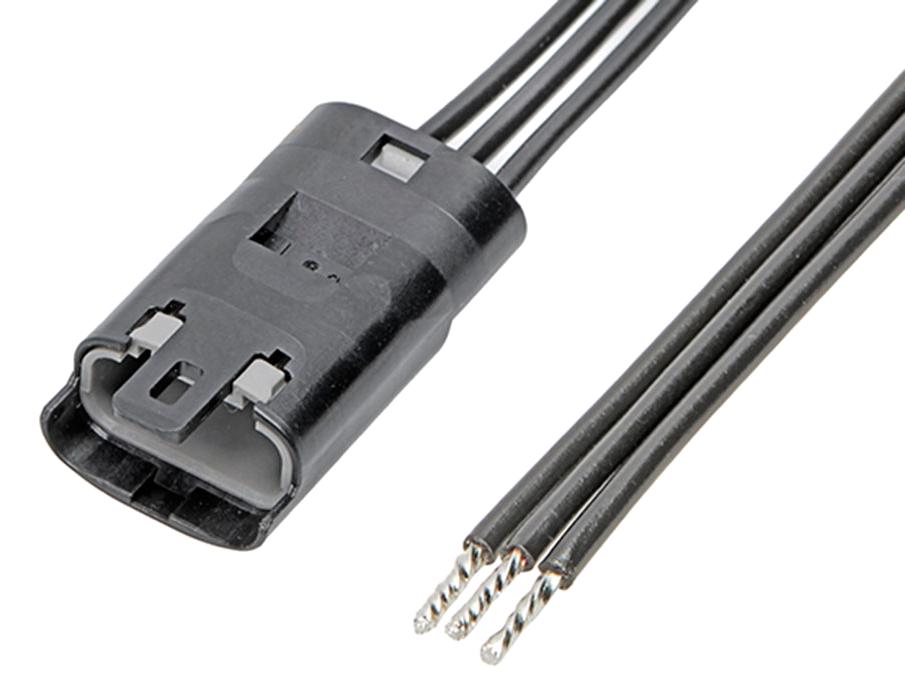

MOLEX 2153101033 Waterproof Connector
The 215310 series Mizu-P25 cable assemblies are compact, waterproof connectors designed with a 2.50mm pitch. Suitable for automotive, industrial, and consumer applications, these assemblies support up to 4A current and are IP67 rated for water resistance. They feature female-to-female connectors with positive locking mechanisms for secure connection, and a raised body for polarization to prevent mis-mating. Made from polyester housings with phosphor bronze contacts tin-plated, they provide reliable, space-efficient connections in harsh environments. These UL-certified assemblies also support various cable lengths, ensuring versatile deployment across multiple industries.
MOLEX 2153101033 Waterproof Connector Specifications:
- Pitch: 2.50mm
- Circuit Count: 3
- Cable Length: 600.00mm
- Housing Material: Polyester
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Current Rating: 4A
- Voltage Rating: Up to 60V
- Waterproof: IP67-rated
- Color: Black
- Gender: Female-Female
- Assembly Type: Cable assembly with positive locking
- Maximum wire size: 1.40-1.90mm
- Wire Insulation Diameter: 14.318/g
- Supported wire gauge: 20, 22 AWG
- Part Number: 2153101033
- Standards: UL certification (file no E29179)
- Application: Automotive, industrial automation, consumer electronics
Buy the Buy Molex Mizu-P25 Cable Assembly Part Number 2153101033 Online
Experience the durability and precision of the Molex Mizu-P25 Waterproof Connector, featuring a 2.50mm pitch, female-to-female configuration, and IP67-rated housing ideal for rugged environments. Designed for easy installation and space-limited applications, it supports up to 4A current and up to 60V. Made with high-quality phosphor bronze contacts tin-plated for corrosion resistance, housed in a polyester shell, and UL-certified for safety and reliability. Perfect for automotive, industrial, and consumer electronics requiring waterproof, secure connections.
Get Molex 2153101033 today—built for waterproof reliability, space efficiency, and secure connections in harsh conditions.
Frequently Asked Questions
Where can I buy MOLEX 2153101033?
You can click on the BUY or RFQ button to purchase 2153101033 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153101033?
You can download the 2153101033 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153101033?
MOLEX
