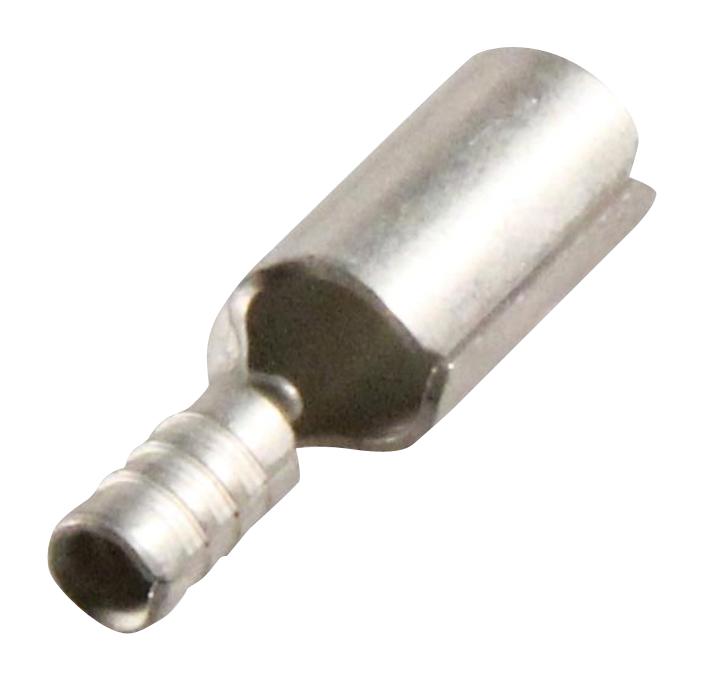

MOLEX 190370002 Krimptite Snap Plug Receptacle
The MOLEX 19037-0002 Krimptite Snap Plug Receptacle is a robust connector designed for quick and reliable connections with 18-22 AWG wire. It utilizes a closed barrel design and female gender for secure mating. This connector is ideal for various applications requiring a simple and efficient termination method. The product is RoHS compliant and features a tin plating for enhanced corrosion resistance. MOLEX provides tooling options for efficient and consistent crimping, ensuring optimal performance and reliability.
MOLEX 190370002 Krimptite Snap Plug Receptacle Specifications:
- status: Active
- overview: Snap Plugs and Receptacles
- description: Krimptite Snap Plug Receptacle, for 18-22 AWG Wire, Box, 16.26mm Length
- series: 19037
- product_name: Krimptite
- type: Snap Receptacle
- barrel_type: Closed
- gender: Female
- glow_wire_capable: No
- insulation: None
- lock_to_mating_part: None
- material_metal: Brass
- material_plating_mating: Tin
- material_plating_termination: Tin
- net_weight_g: 0.581
- orientation: Straight
- packaging_type: Bag
- wire_size_awg: 18, 20, 22
- voltage_maximum: N/A
- engineering_number: AA-1121
- upc: 800755059007
- crimp_quality_equipment: Yes
- insulated: No
- halogen_free_status: Low-Halogen
- reach_svhc_compliance: Not Contained
- rohs_elv_compliance: Not Relevant
- rohs_china_compliance: Compliant
- rohs_phthalates_compliance: Not Contained
- agency_certification_csa_lr: LR18689
- agency_certification_ul: E152602
- hand_crimp_tool_product_number: 640031100
- crimp_head_product_number: 640071100
