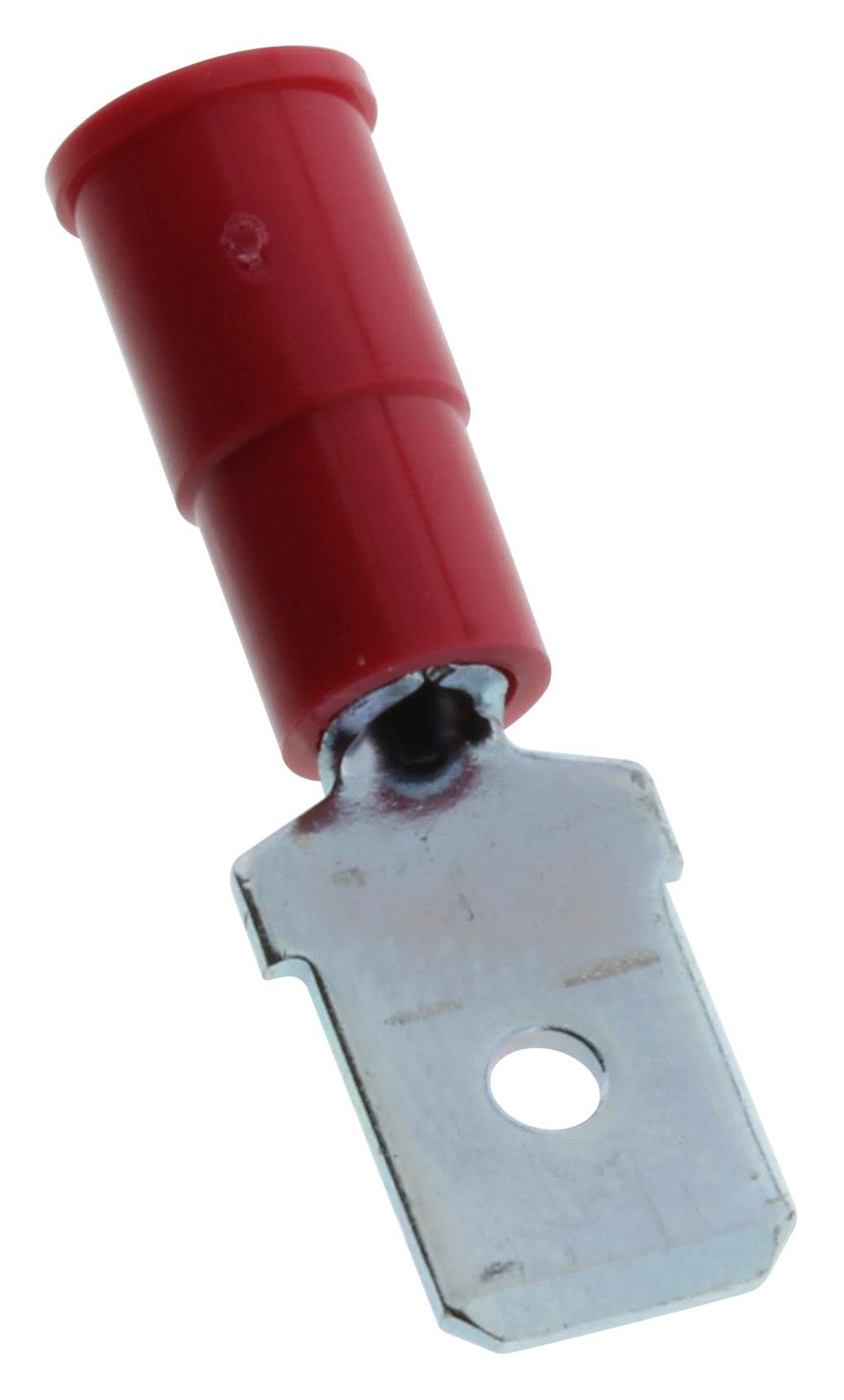

MOLEX 190230005 Quick Disconnect Terminal
The InsulKrimp Quick-Disconnect Male terminal is designed for reliable connections in wiring systems, suitable for wire sizes 18-22 AWG. Made from durable brass with zinc chromate plating, it features a closed barrel and insulation made of flame-retardant PVC rated at 94V-0. The terminal has a straight orientation, with a tab width of 6.35mm and thickness of 0.81mm, operating within -50°C to +105°C. It is UL and CSA certified for safety and environmental standards, and ideal for automated and manual crimping processes in industrial applications.
MOLEX 190230005 Quick Disconnect Terminal Specifications:
- Material: Brass with Zinc Chromate plating
- Insulation: Flame-retardant PVC, flammability 94V-0
- Wire Size: 18-22 AWG, maximum insulation diameter 3.70mm
- Tab Width: 6.35mm, Thickness: 0.81mm
- Operating Temperature Range: -50°C to +105°C
- Voltage Rating: 600V maximum
- Color: Red
- Gender: Male
- Barrel Type: Closed
- Orientation: Straight
- Lock to Mating Part: None
- Glow-Wire Capable: No
- Certification: UL, CSA
Buy the Molex 190230005 – Reliable Quick Disconnect Male for Industrial Applications
Enhance your wiring reliability with the Molex Series 19023 InsulKrimp Quick-Disconnect Male terminal. Crafted from brass with zinc chromate plating, it ensures excellent electrical conductivity and corrosion resistance. Rated at 600V, suitable for 18-22 AWG wires, and compliant with UL and CSA standards, this terminal offers secure, quick connections in demanding environments. Its flame-retardant PVC insulation and straight orientation make it easy to install and ideal for automated crimping processes. Purchase online to get top quality for your industrial wiring needs.
Order your Molex Series 19023 quick-disconnect terminal today and ensure dependable connections for your industrial wiring projects.
