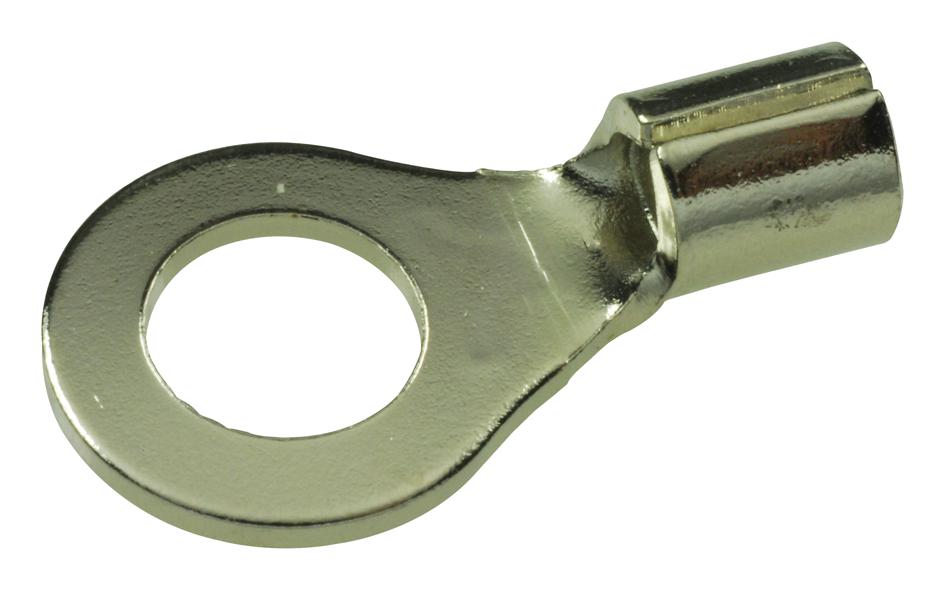

MOLEX 190560018 VersaKrimp Ring Tongue Terminal
The MOLEX 19056-0018 VersaKrimp Ring Tongue Terminal is a robust and reliable solution for terminating wires in a variety of applications. Designed for use with 18-22 AWG wire, this terminal offers a secure and consistent connection. Its closed-barrel brazed construction ensures excellent conductivity and durability. The tin plating provides corrosion resistance and ease of soldering, while its compact design makes it suitable for space-constrained environments. Commonly used in automotive, industrial equipment, and consumer electronics, the 19056-0018 is a versatile choice for demanding wire termination needs.
MOLEX 190560018 VersaKrimp Ring Tongue Terminal Specifications:
- overview: VersaKrimp Terminals and Splices
- product_family: Ring and Spade Terminals
- series: 19056
- type: Ring
- upc: 800755063141
- barrel_type: Closed - Brazed
- insulation: None
- material_metal: Copper
- material_plating: Tin
- net_weight: 0.586/g
- packaging_type: Carton
- stud_size: 10 (M5)
- temperature_range_operating: 149°C
- termination_interface_style: Crimp or Compression
- wire_size_AWG: 18, 20, 22
- wire_size_mm²: 0.25-1.50
- lead_free_process_capability: N/A
- engineering_number: A-321-10
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free: Low-Halogen
- rohs_phthalates: Not Contained
- application_tooling_premium_grade_hand_crimp_tool: 640030100
- application_tooling_crimp_head_for_at200: 640070100
