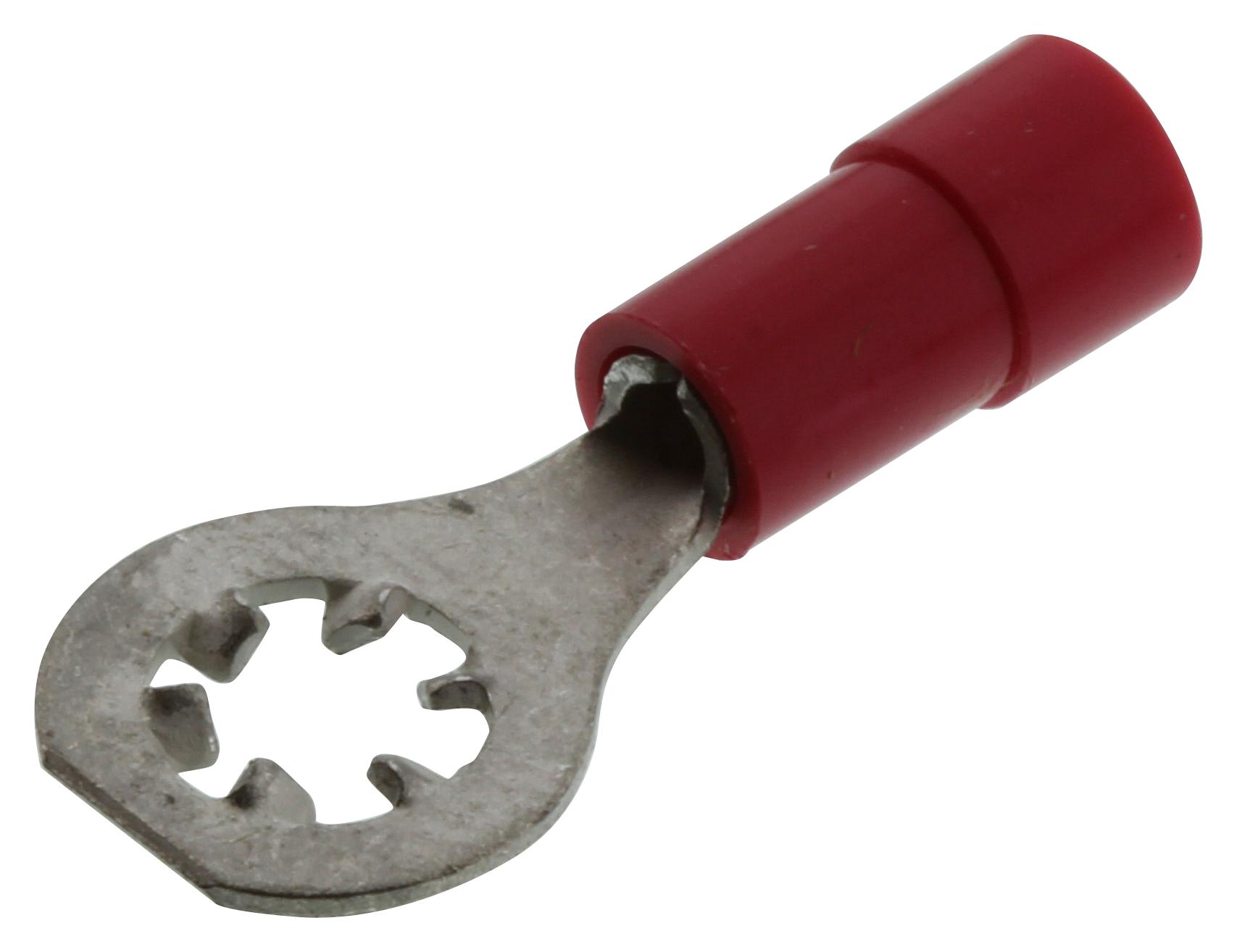

MOLEX 190750007 InsulKrimp Ring Tongue Terminal
The MOLEX 19075-0007 InsulKrimp Ring Tongue Terminal is a solderless termination solution for connecting wires to studs. Constructed from steel with a tin plating, this terminal is designed for 18-22 AWG wire and a 6 (M3.5) stud size. It is RoHS compliant and suitable for various industrial applications requiring secure and reliable wire connections. The InsulKrimp design ensures a consistent and high-quality crimp, simplifying the termination process and enhancing overall performance.
MOLEX 190750007 InsulKrimp Ring Tongue Terminal Specifications:
- overview: Solderless Terminals
- wire_size: 18, 20, 22 AWG
- stud_size: 6 (M3.5)
- wire_insulation_diameter: 3.68mm
- material: Steel
- plating: Tin
- insulation: PVC
- flammability: 94V-0
- net_weight: 0.610 g
- packaging_type: Bag
- agency_certification: CSA LR18689, UL E32244
- rohs_status: Compliant
- reach_svhc: Not Contained
- halogen_free: Low-Halogen
- upc: 800753079489
- crimp_quality_equipment: Yes
- engineering_number: SRA-S-229-06X
- hand_crimp_tool: 640010500
- crimp_head: for 640050500 AT-200 Pneumatic Hand Tool
- barrel_type: Closed
- china_rohs: Green Image
Buy the 19075-0007 MOLEX InsulKrimp Ring Tongue Terminal | myMectronic
Purchase the MOLEX 19075-0007 InsulKrimp Ring Tongue Terminal securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 190750007?
You can click on the BUY or RFQ button to purchase 190750007 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190750007?
You can download the 190750007 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190750007?
MOLEX
