MOLEX 875681263 PCB Connector
The Milli-Grid Cable-to-Board Receptacle system offers a reliable 12-circuit, dual-row connector solution suitable for PCB applications. Constructed from durable copper alloy with gold-plated contacts, it supports up to 100 mating cycles, ensuring longevity and efficient performance. Operating within -20°C to +85°C, the receptacle features a 2.00mm pitch, epoxy polyester resin housing, and a black color for easy identification. Compatible with various PCB headers, it is RoHS compliant, halogen-free, and designed for high-reliability electronic assemblies in industrial and consumer electronics.
MOLEX 875681263 PCB Connector Specifications:
- Number of Circuits: 12
- Color: Black
- Material - Metal: Copper Alloy
- Material - Plating: Gold
- Material - Resin: Polyester
- Durability (mating cycles max): 100
- Flammability: 94V-0
- Gender: Female
- Temperature Range: -20°C to +85°C
- Pitch - Mating Interface: 2.00mm
- Wire Size AWG: 28
- Maximum Current per Contact: 1.0A
- Maximum Voltage: 125V
- Packaging Type: Tray
- RoHS, China RoHS, Reaches, Halogen-Free: Compliant
- Lock to Mating Part: None
- Panel Mount: No

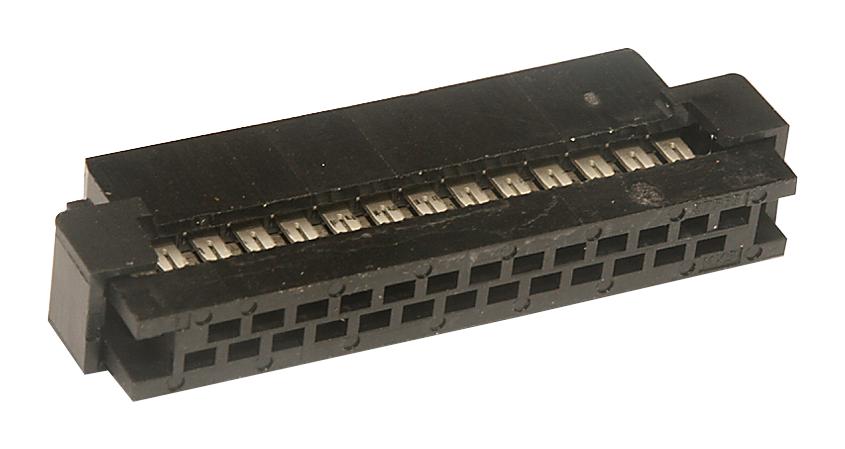

Buy the Buy Molex Milli-Grid Part Number 0875681263 Online
Secure your electronic projects with the Molex Milli-Grid connector, a 12-circuit, dual-row PCB interface designed for durability and high performance. Crafted from copper alloy with gold-plated contacts, it supports up to 100 mating cycles, ensuring long-term reliability. Operating in temperatures from -20°C to +85°C, it features a 2.00mm pitch, RoHS compliance, and halogen-free materials. Compatible with various headers, this connector is suitable for industrial, consumer electronics, and high-performance applications, delivering secure connections and easy installation.
Buy Molex Milli-Grid 0875681263 now and experience unmatched reliability and performance with a robust, high-quality connector system for electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 875681263?
You can click on the BUY or RFQ button to purchase 875681263 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 875681263?
You can download the 875681263 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 875681263?
MOLEX
