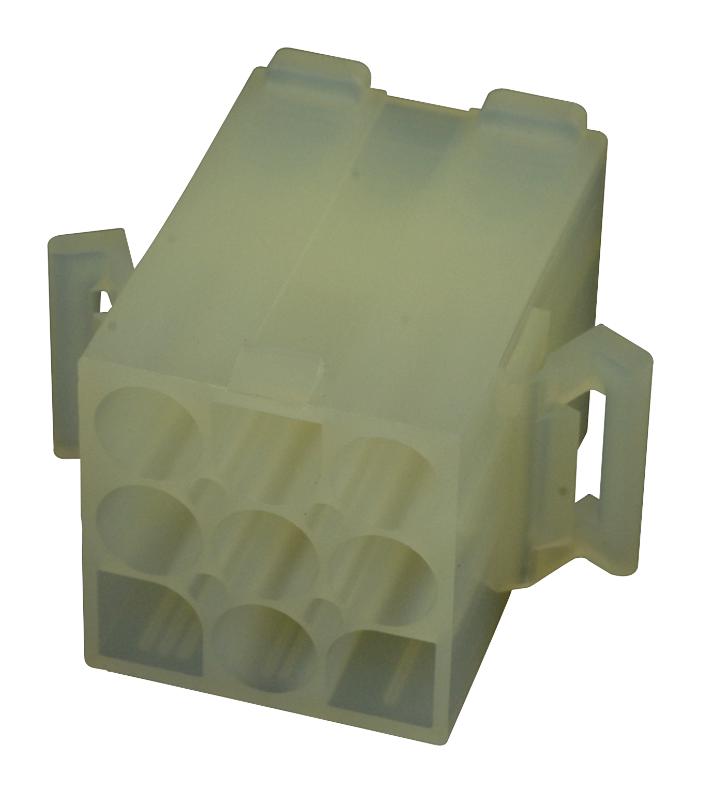

MOLEX 19092098 Standard .093 Pin Socket Plug Housing
The MOLEX 19-09-2098 is a robust plug housing within the 3191 series, engineered for reliable wire-to-wire power connections. This housing accommodates up to 9 circuits and is constructed from durable nylon material. It incorporates a positive latch mechanism for secure mating and a panel mount feature for easy integration into various systems. Compliant with UL 94V-2 flammability standards, this connector is suitable for a wide range of industrial applications requiring dependable electrical connections.
MOLEX 19092098 Standard .093 Pin Socket Plug Housing Specifications:
- overview: Standard .093" Pin and Socket Connectors
- diameter: 2.36mm
- circuits_maximum: 9
- flammability: 94V-2
- gender: Plug
- keying_to_mating_part: None
- material_resin: Nylon
- number_of_rows: 3
- panel_mount: Yes
- pitch_mating_interface: 6.70mm
- temperature_range_operating: -40° to +105°C
- current_maximum_per_contact: 8.0A
- engineering_number: 3191-9P
- upc: 800753594258
- color_resin: Natural
- packaging_type: Bag
- net_weight: 10.862/g
- polarized_to_mating_part: Yes
- stackable: No
- glow_wire_capable: No
- lock_to_mating_part: Yes
