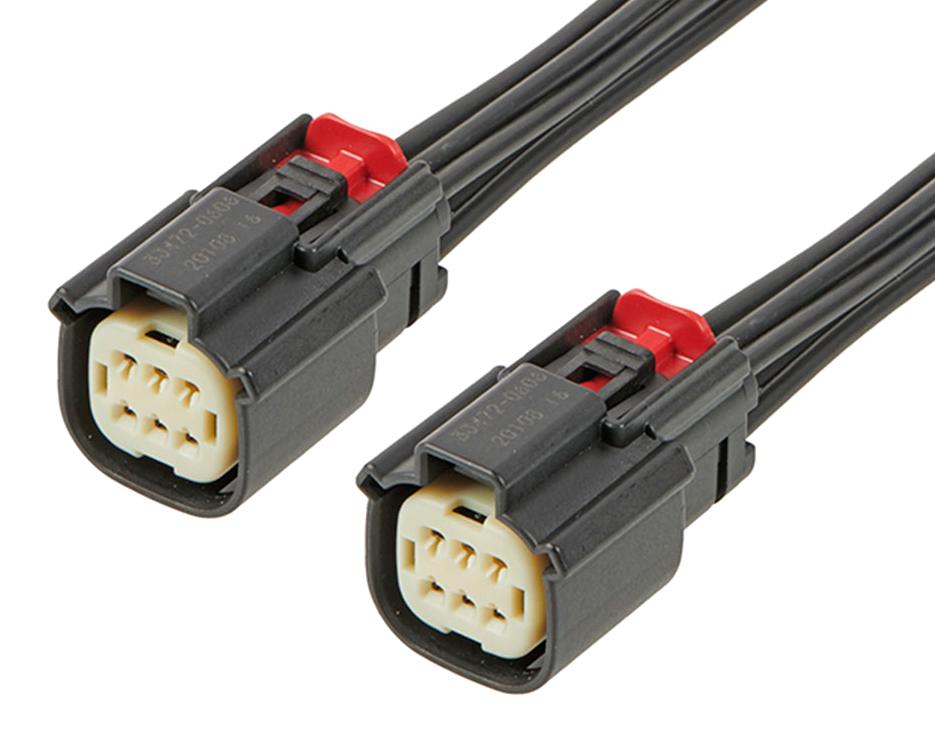

MOLEX 2162851062 MX150 Female-to-Female Cable Assembly
The MOLEX 216285-1062 is an off-the-shelf cable assembly designed for robust connectivity in various industrial applications. This assembly utilizes MX150 female connectors at both ends, providing a secure and reliable connection. With a 300mm length and tin plating, it's suitable for wire-to-board and wire-to-wire applications, offering good signal transmission and durability. The assembly is constructed with high-performance alloy (HPA) and SPS/Nylon insulation, ensuring longevity and resistance to environmental factors. It is commonly used in power and discrete wire assembly applications where a sealed connection is required.
MOLEX 2162851062 MX150 Female-to-Female Cable Assembly Specifications:
- Part Number: 2162851062
- Status: Active
- Overview: Off-the-Shelf Cable Assemblies
- Description: MX150 Female-to-MX150 Female Off-the-Shelf (OTS) Cable Assembly, Dual Row, 300.00mm Length, Tin (Sn) Plating, 6 Circuits, Black
- Cable Length: 300.00mm
- Circuits (Loaded): 6
- Color: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: High Performance Alloy (HPA)
- Material - Plating: Tin
- Material - Resin: SPS/Nylon
- Net Weight: 629.400/g
- Number of Rows: 2
- Packaging Type: Bag
- Pitch - Mating Interface: 3.50mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 2.70mm max.
- Wire Size AWG: 14
- Wire/Cable Type: TXL Stranded
- Current - Maximum per Contact: 22.0A
- Voltage - Maximum: 14V DC
- Mates With: MX150 Sealed Dual Row Male Connector 33482
