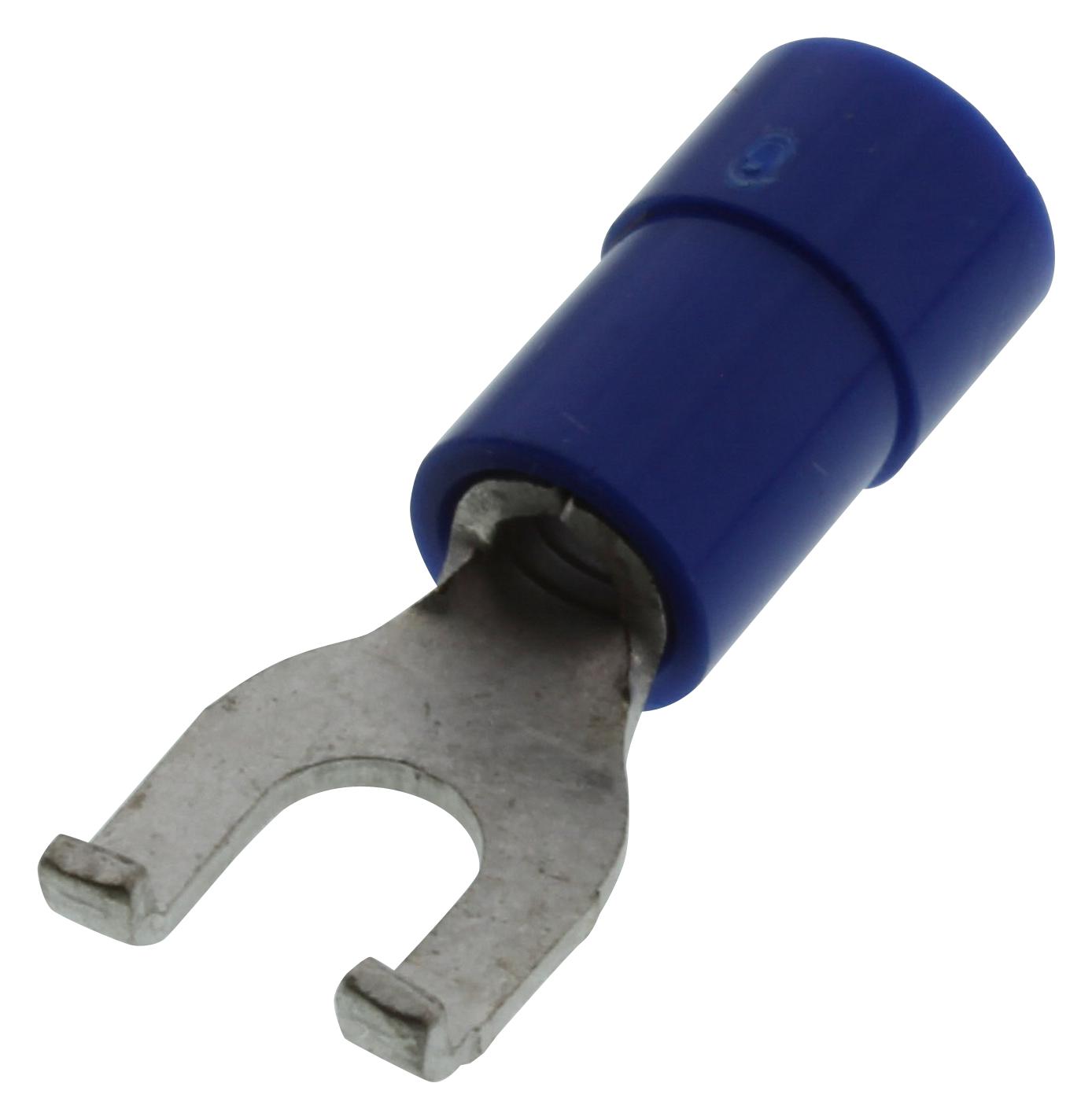

MOLEX 191210028 InsulKrimp Spade Terminal
The MOLEX 19121-0028 InsulKrimp Flanged Spade Tongue Terminal is a solderless termination solution for connecting wires to various devices. Designed for 14-16 AWG wire with a stud size of 8 (M4), this terminal offers a secure and reliable connection. Its closed barrel design and natural resin color provide durability and ease of identification. The terminal is RoHS compliant, indicating adherence to environmental standards, and is currently an active product in MOLEX's portfolio. It is commonly used in automotive, industrial, and consumer electronics applications where a robust and reliable spade connector is required.
MOLEX 191210028 InsulKrimp Spade Terminal Specifications:
- Overview: Solderless Terminals
- Description: InsulKrimp Flanged Spade Tongue Terminal for 14-16 AWG Wire, Stud Size 8 (M4)
- Product Family: Ring and Spade Terminals
- Series: 19121
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- Product Name: InsulKrimp
- Type: Spade
- Barrel Type: Closed
- Color - Resin: Natural
- Flammability: 94V-0
- Insulation: PVC
- Material - Plating Mating: Tin
- Net Weight: 0.734/g
- Packaging Type: Bag
- Plating min - Mating: 4.064µm
- Plating min - Termination: 4.064µm
- Stud Size: 8 (M4)
- Wire Insulation Diameter: 4.45mm
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.00-2.50
- Engineering Number: BB-216-08X
- UPC: 800753095618
- Agency Certification CSA: LR18689
- Agency Certification UL: E32244
- EU ELV: Not Relevant
- EU RoHS: Not Reviewed
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
