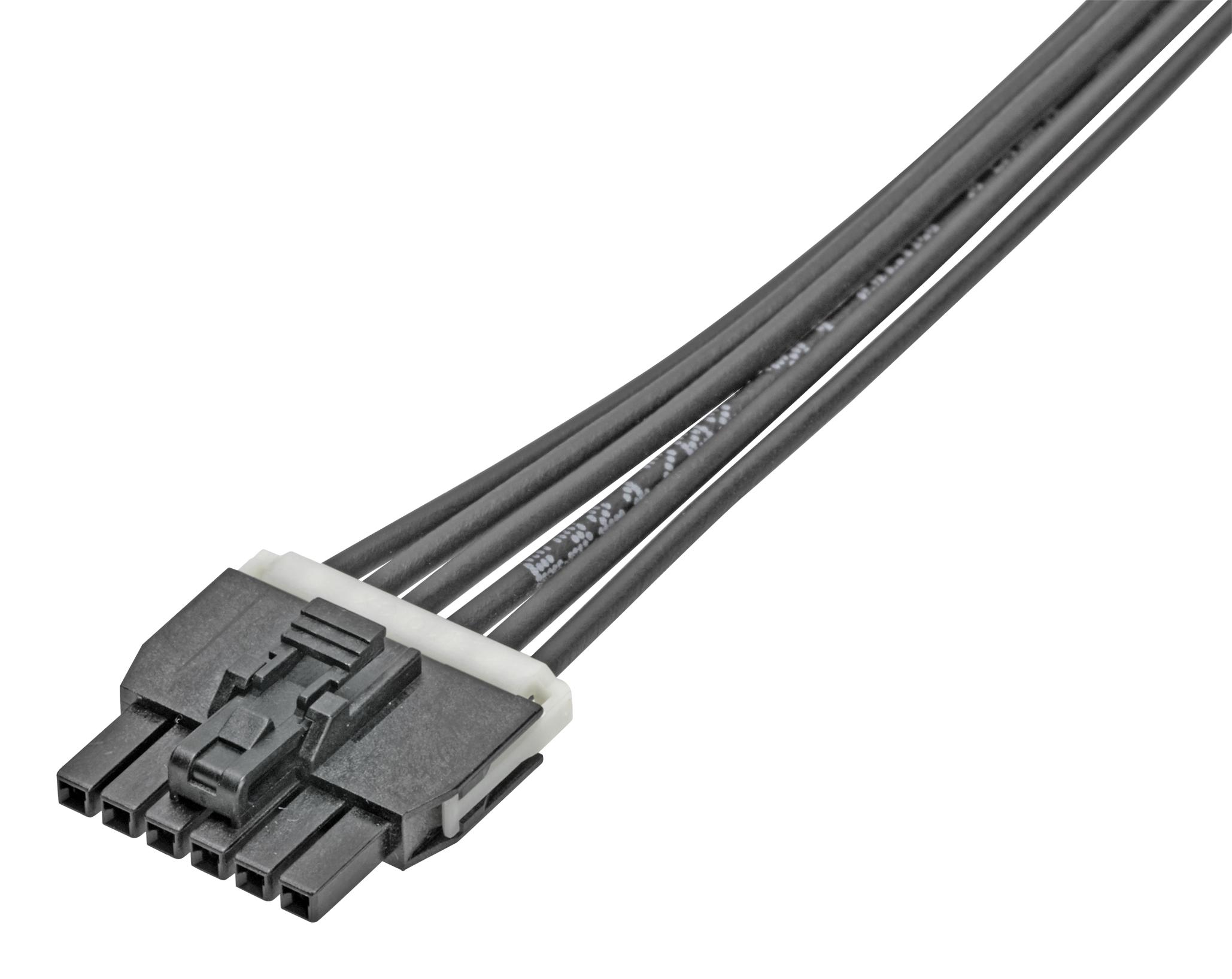

MOLEX 1451300610 Nano-Fit OTS Cable Assembly
The MOLEX 1451300610 Nano-Fit OTS cable assembly provides a robust and compact solution for power transmission in various industrial applications. Designed with a Nano-Fit connector on both ends, this assembly facilitates secure and efficient wire-to-board connections. Its 1.0m length and 6-circuit configuration make it suitable for a range of applications, while the black nylon resin housing ensures durability and insulation. The assembly is RoHS compliant and features a matte tin plating for reliable electrical contact. It is ideal for applications requiring a compact, high-performance power connector.
MOLEX 1451300610 Nano-Fit OTS Cable Assembly Specifications:
- Series: 145130
- EU ELV: Not Relevant
- Application: Power, Wire-to-Board
- Configuration: Dual Ended
- Connectors: Nano-Fit-to-Nano-Fit
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Cable Length: 1.0m
- Circuits (Loaded): 6
- Color: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Net Weight: 43.690/g
- Packaging Type: Bag
- Pitch - Mating Interface: 2.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Wire Insulation Diameter: 1.57mm
- Wire Size AWG: 20
- Wire/Cable Type: UL 1061
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Mates With: Nano-Fit Headers 105309, 105311, 105328
- Termination Interface: Crimp or Compression
