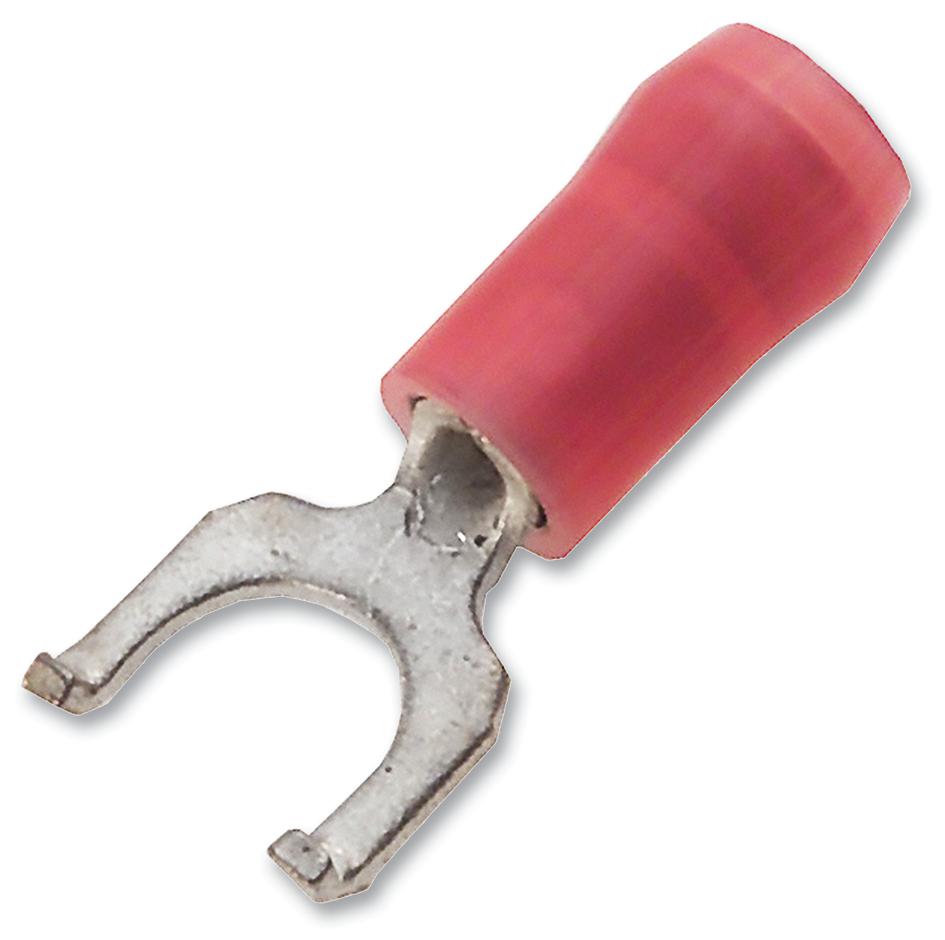

MOLEX 191270012 Avikrimp Spade Terminal
The MOLEX 19127-0012 Avikrimp™ Flanged Spade Tongue Terminal is a solderless termination solution for connecting wires to terminals or studs. Designed for 22-18 AWG wire with a stud size of 10 (M5), this terminal offers a secure and reliable connection. The closed barrel construction and tin plating provide excellent conductivity and corrosion resistance. It is commonly used in automotive, industrial, and consumer electronics applications where a robust and easy-to-install termination is required. This active part is RoHS compliant, ensuring adherence to environmental regulations.
MOLEX 191270012 Avikrimp Spade Terminal Specifications:
- Part Number: 0191270012
- Status: Active
- Overview: Solderless Terminals
- Description: Avikrimp™ Flanged Spade Tongue Terminal for 22-18 AWG Wire, Stud Size 10 (M5)
- Agency Certification CSA: LR18689
- Agency Certification UL: E32244
- Product Family: Ring and Spade Terminals
- Series: 19127
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- Product Name: Avikrimp™
- Type: Spade
- UPC: 800753098947
- Barrel Type: Closed
- Flammability: 94V-2
- Insulation: Nylon (PA)
- Material - Plating Mating: Tin
- Net Weight: 0.760/g
- Packaging Type: Bag
- Stud Size: 10 (M5)
- Wire Insulation Diameter: 3.56mm max.
- Wire Size AWG: 18, 20, 22
- Wire Size mm²: 0.25-1.50
- Engineering Number: AA-815-10
- Product Specification: PS-19902-011-001, PS-19902-013-001
- Sales Drawing: SD-19127-003
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- China RoHS: Compliant
- RoHS Phthalates: Not Contained
