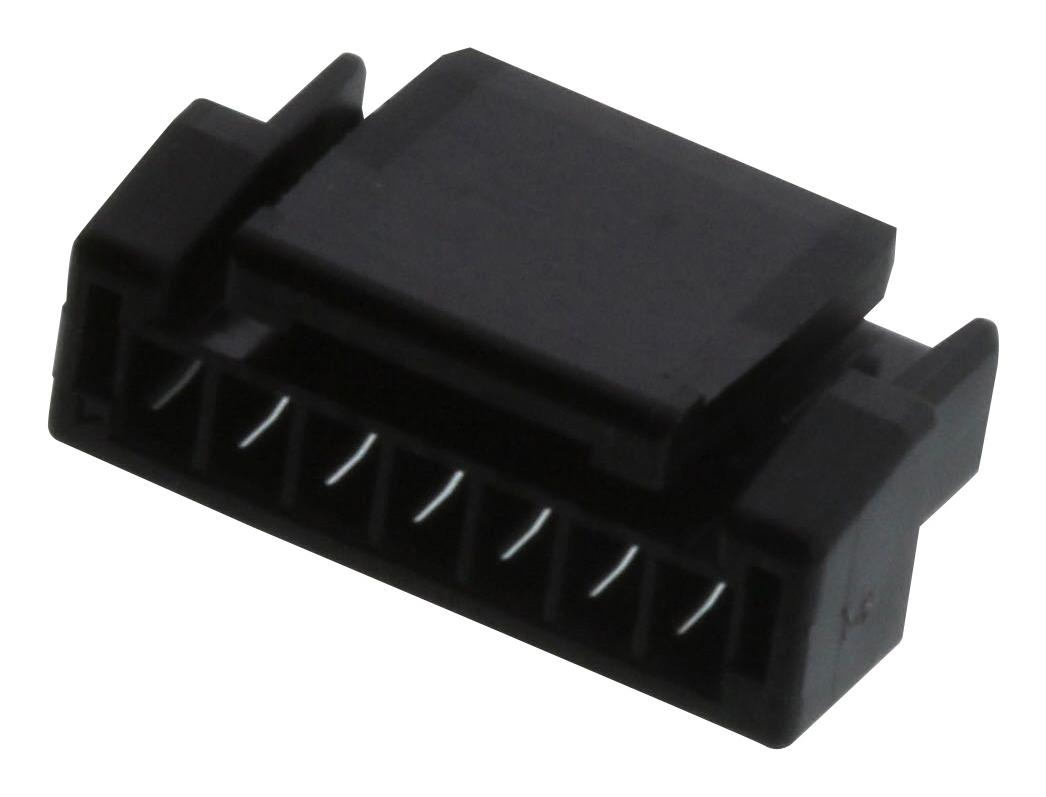

MOLEX 2045320701 Wire-to-Board Connector
The Micro-Lock Plus Receptacle Housing is a low-halogen, black, 1.25mm pitch, single-row connector designed for wire-to-board applications. It features a positive lock mechanism, 7 circuits, and is made from durable polyester resin. This receptacle is compatible with Micro-Lock Plus headers and terminals, offering reliable mating and high-temperature operational range up to +105°C. Certified by CSA and UL, it ensures safety and compliance for electronic connection needs in various industrial and consumer devices. Its compact design facilitates easy assembly in tight spaces, providing secure and efficient electrical connections.
MOLEX 2045320701 Wire-to-Board Connector Specifications:
- Number of Circuits: 7
- Color: Black
- Material: Polyester resin
- Lock to Mating Part: Yes
- Gender: Receptacle
- Glow-Wire Capable: No
- Pitch - Mating Interface: 1.25mm
- Temperature Range - Operating: -40°C to +105°C
- CSA Certified: Yes
- UL Certified: Yes
- Net Weight: 140.230 mg
- Packaging Type: Bag
- Number of Rows: 1
- Physical Size: Receptacle housing designed for low-profile applications
- Application: Wire-to-board connection system
- Reference Drawing Number: AS-505565-001-001
- Certification: CSA, UL
- Status: Active
- RoHS Compliant: Yes
- Halogen-Free: Yes
Buy the Molex Series Micro-Lock Plus Receptacle Housing: 2045320701
Enhance your electronic assembly with the Molex Micro-Lock Plus Receptacle Housing, offering a 1.25mm pitch, 7 circuits, and low-halogen materials for safe, reliable connections. Designed for durability with UL and CSA certifications, this low-profile connector fits compact spaces and provides secure locking to prevent accidental disconnection. Its high-temperature tolerance up to +105°C ensures dependable performance even in demanding environments. Ideal for industrial, consumer, and electronic device applications, it simplifies mounting and ensures long-term electrical integrity for your projects.
Order your Molex Series Micro-Lock Plus Receptacle Housing today and ensure reliable, low-halogen wire-to-board connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2045320701?
You can click on the BUY or RFQ button to purchase 2045320701 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2045320701?
You can download the 2045320701 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2045320701?
MOLEX
