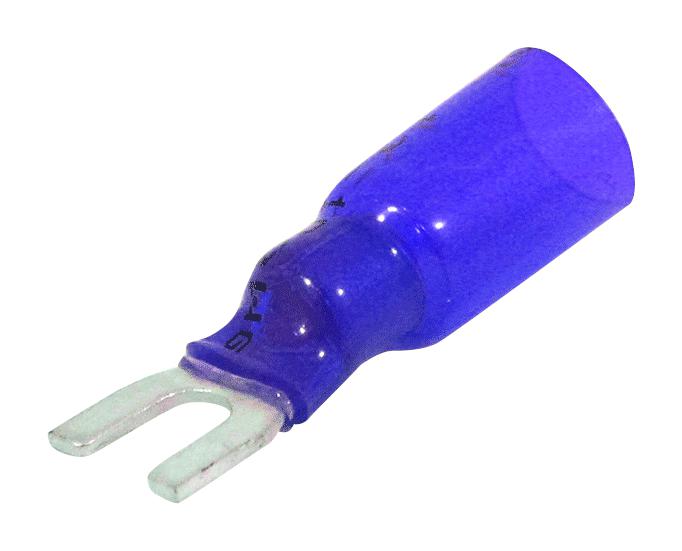

MOLEX 191960037 Spade Avikrimp Terminal
The MOLEX 19196-0037 is a spade terminal within the 19196 series, engineered for secure and reliable electrical connections. Designed for use with Avikrimp tooling, this terminal offers consistent crimp quality. It boasts a 94V-2 flammability rating, indicating good resistance to fire, and is RoHS compliant, minimizing environmental impact. This terminal is ideal for applications requiring a robust and dependable spade connector, commonly found in automotive, industrial, and consumer electronics.
MOLEX 191960037 Spade Avikrimp Terminal Specifications:
- Product Family: Ring and Spade Terminals
- Series: 19196
- Crimp Quality: Equipment Yes
- Flammability: 94V-2
- Net Weight: 1.354/g
- Plating min Mating (µin): 100
- Plating min Mating (µm): 2.5
- Plating min Termination (µin): 100
- Plating min Termination (µm): 2.5
- UPC: 800753045132
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Not Contained Per -ED/88/2018 (15 January 2019)
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- RoHS Phthalates: Not Contained
- Application Tooling PremiumGrade Hand Crimp Tool: 640010100
- Application Tooling Crimp Head for AT-200: 640050100
