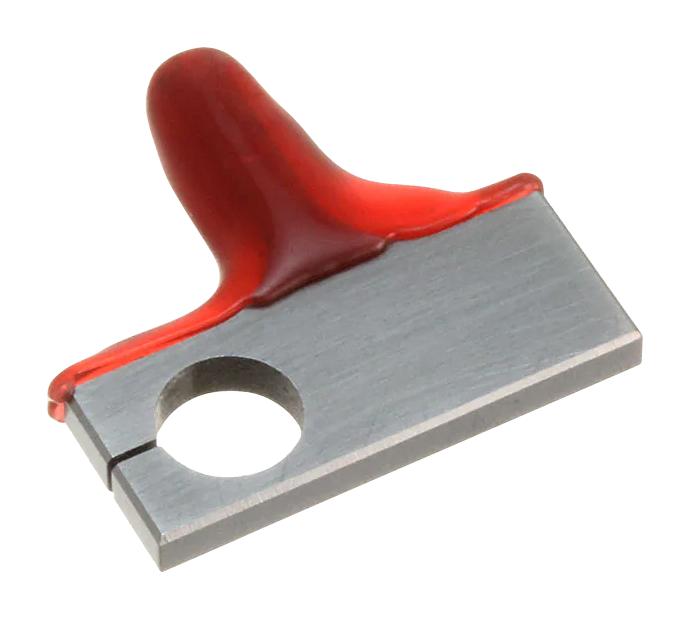

MOLEX 11185259 Crimping Tool
The Molex Mini-Mac Applicator for KK Terminals is a precision tool designed for crimping 22-30 AWG terminals, including KK and Cat Ear types. It adapts to most automatic wire processing machines with industry-standard mounting and shut height of 135.80mm. Features include quick setup, fine incremental adjustments for conductor and insulation crimp heights, and independent adjustment rings for ease of use. Ideal for manufacturing and electrical wiring applications, it ensures consistent, reliable crimps for various wire insulation diameters, enhancing operational efficiency.
MOLEX 11185259 Crimping Tool Specifications:
- Crimping range: 22-30 AWG, insulation diameter 0.35-0.05 mm, conductor strip length 1.09-1.57 in.
- Applicator height: 135.80mm (5.346 inches), designed for industry-standard mounting.
- Adjustment increments: .015mm (.0006 inches) for conductor, .063mm (.0025 inches) for insulation.
- Crimp specifications include bell mouth: 0.20-0.50mm (.008-.020 inches), and crimp height: 0.031-.033 inches for 22 AWG.
- Pull force after crimp: 44.88 N (10.0 lb) for 22 AWG, 35.59 N (8.0 lb) for 24 AWG, 17.79 N (4.0 lb) for 26 AWG, 13.34 N (3.0 lb) for 28 AWG, 8.89 N (2.0 lb) for 30 AWG.
- Tool materials: high-quality components including conductor and insulation punches, anvil, cutters, and retainer block.
- Compatible with Molex KK crimp terminals, assures precise and consistent crimps for industrial wiring projects.
- Includes optional tooling kits and various component parts such as punch, anvil, and holding frames for maintenance and setup.
- Designed to ensure safe operation, maintenance, and reliable crimping performance in automated and manual wire processing.
- Manufactured and maintained with recommended calibration, checks, and safety procedures for industrial environments.
Buy the Molex Series KK Crimping Tool: 11185259
Experience reliable and precise wire crimping with the Molex KK Crimping Tool. Designed for 22-30 AWG terminals, it features quick setup, fine adjustment capabilities, and industry-standard mounting. Perfect for automation and high-volume manufacturing, this tool ensures consistent, high-quality crimps every time. Its durable construction and compatibility with Molex KK terminals make it an essential part of your electrical assembly workspace. Purchase online today and enhance your wire processing efficiency with a trusted, high-performance crimping solution.
Get Molex 11185259 today—built for precision and long-lasting durability in wire crimping applications.
Frequently Asked Questions
Where can I buy MOLEX 11185259?
You can click on the BUY or RFQ button to purchase 11185259 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 11185259?
You can download the 11185259 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 11185259?
MOLEX
