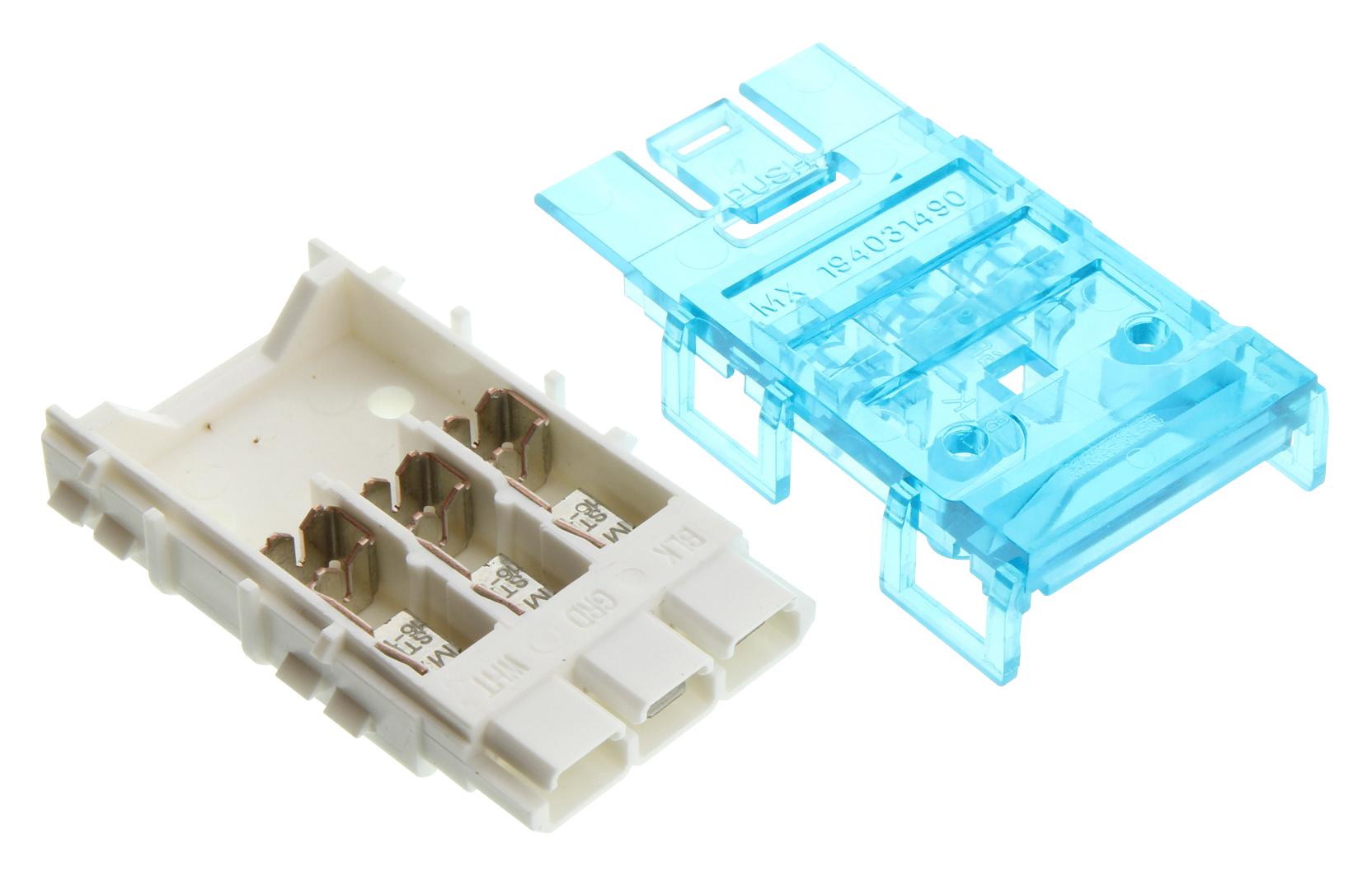

MOLEX 194030011 Self-Contained Power Connector
The MOLEX 19403-0011 Self-Contained Power Connector is a wire-to-wire connector engineered for round jacketed, stranded conductor power cords commonly used in RV slide-out manufacturing applications. This connector provides a secure and reliable connection for 2 circuits with ground, accommodating 14 AWG wire and an insulation diameter of 15.24mm. It's designed for durability, with a rating of 250 mating cycles and constructed with high copper alloy and tin plating for excellent conductivity and corrosion resistance. The connector's vertical orientation and robust design make it suitable for demanding environments.
MOLEX 194030011 Self-Contained Power Connector Specifications:
- Circuits (Loaded): 2
- Circuits (maximum): 2
- Circuits Detail: 2 Circuits with Ground
- Color - Resin: Clear, Natural
- Durability (mating cycles max): 250
- Lock to Mating Part: Yes
- Material - Metal: High Copper Alloy
- Material - Plating: Tin
- Material - Resin: Polycarbonate, Polyester
- Net Weight: 28.983/g
- Number of Rows: 1
- Orientation: Vertical
- PCB Retention: N/A
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 10.10mm
- Plating min - Mating: 1.016µm
- Plating min - Termination: 1.016µm
- Polarized to Mating Part: Yes
- Surface Mount Compatible (SMC): N/A
- Temperature Range - Operating: -35° to +85°C
- Termination Interface: Style: IDT or Pierce
- Wire Insulation Diameter: 15.24mm
- Wire Size AWG: 14
- Current - Maximum per Contact: 15.0A
- Voltage - Maximum: 600V
- Application: RV slide-out manufacturing
- Mates With: 194030011
