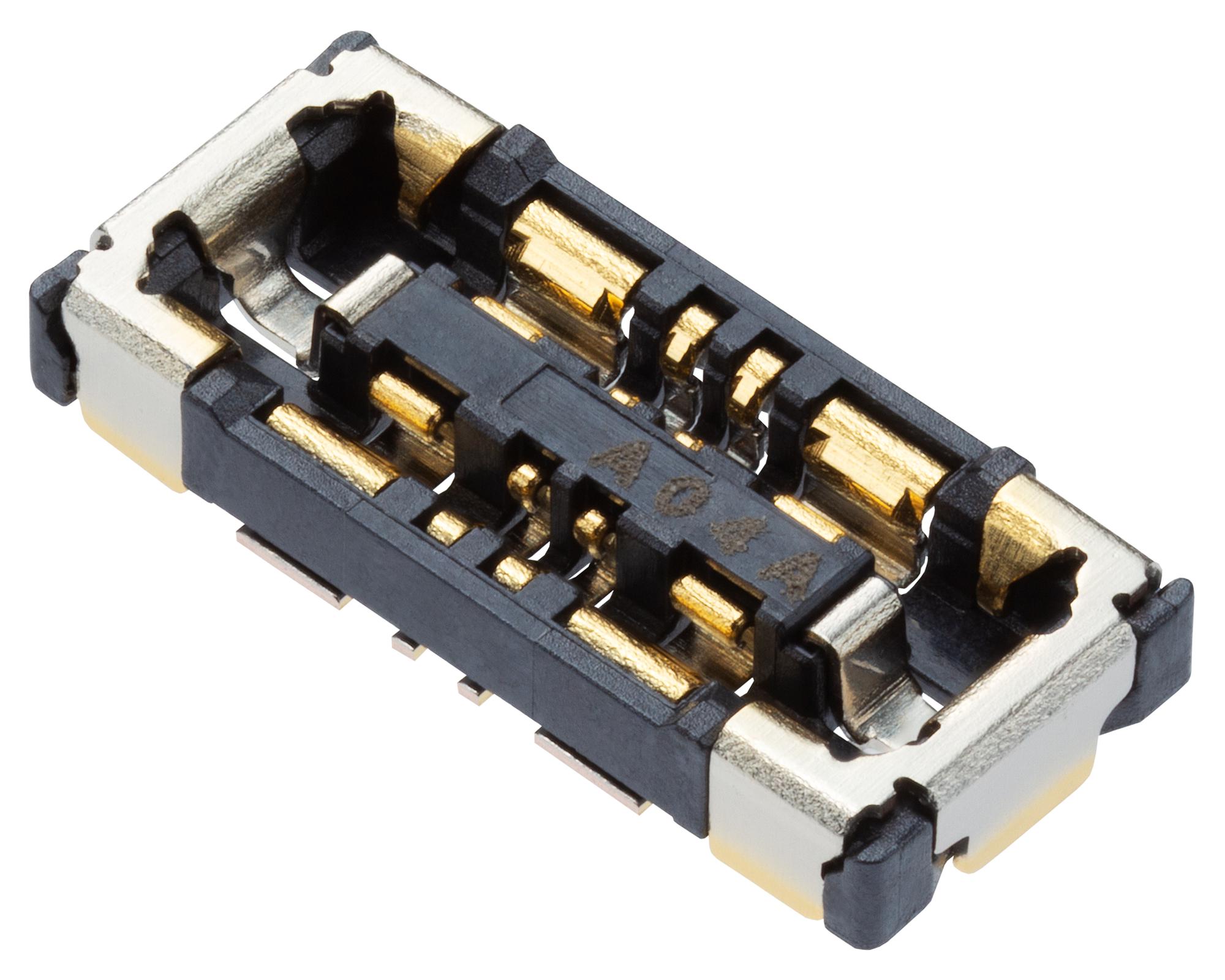

MOLEX 2111750080 Board-to-Board Connector
The 211175 series SlimStack board-to-board receptacle features a 0.35mm pitch for high-reliability power and signal connections in compact devices such as mobile and medical equipment. It supports up to 15A per circuit with a maximum voltage of 50V, and each circuit carries up to 0.3A. Made with a black UL94V-0 LCP housing and copper alloy contacts, it ensures durability and protection. Rated for 10 mating cycles, it operates from -40°C to +85°C, making it ideal for demanding applications requiring secure, space-saving connections.
MOLEX 2111750080 Board-to-Board Connector Specifications:
- Pitch: 0.35mm
- Mated Height: 0.70mm
- Mated Width: 2.00mm
- Number of Circuits: 8
- Current per Circuit: 0.3A (up to 15A total with power circuits)
- Voltage Rating: 50V AC/DC
- Housing Material: Liquid Crystal Polymer (UL94V-0)
- Contact Material: Copper Alloy
- Plating - Mating and Termination: Gold
- Durability: Up to 10 mating cycles
- Operating Temperature Range: -40°C to +85°C
- Color: Black
- Rated for use in high-reliability applications like medical and mobile devices
Buy the Buy Molex SlimStack Board-to-Board Part Number 2111750080 Online
Secure your electronic assembly with the Molex SlimStack Board-to-Board Connector. Designed for compact spaces, it offers up to 15A current capacity with a 0.35mm pitch for space-saving, high-reliability power and signal connections. Crafted from durable UL94V-0 LCP and copper alloy, it withstands demanding environments from -40°C to +85°C. Rated for 10 mating cycles, this connector provides excellent protection and reliable performance for mobile, medical, and other compact electronic devices. Purchase online now for quick, dependable delivery.
Order your Molex SlimStack board-to-board connector part number 2111750080 today and ensure reliable, space-efficient power and signal connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2111750080?
You can click on the BUY or RFQ button to purchase 2111750080 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2111750080?
You can download the 2111750080 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2111750080?
MOLEX
