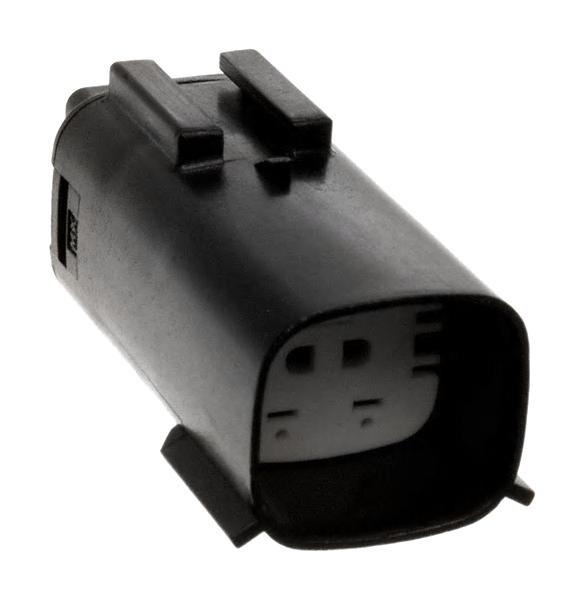

MOLEX 194330001 MX150L Industrial Connector
The MOLEX 19433-0001 is a robust industrial sealed connector from the MX150L series, specifically designed for wire-to-wire power applications. This 4-circuit plug is engineered to withstand harsh environments, offering IP67-rated protection against dust and water ingress. It's suitable for industrial settings requiring reliable, sealed connections and is polarized to the mating part. The connector is not suitable for automotive applications with specific USCAR or GMW requirements. It is designed for 10-12 AWG wire and features a yellow Mat Seal for enhanced protection.
MOLEX 194330001 MX150L Industrial Connector Specifications:
- Overview: MX150L Industrial Sealed Connector System
- Description: MX150L 4 Circuit Plug for 10-12 AWG Wire
- Series: 19433
- Application: Power, Wire-to-Wire
- Comments: Mat Seal Color is Yellow, Polarized to Mating Part. IP67 rated
- Circuits_maximum: 4
- Flammability: 94V-0
- Gender: Plug
- Glow_Wire_Capable: No
- Keying_to_Mating_Part: N/A
- Lock_to_Mating_Part: Yes
- Net_Weight: 19.006/g
- Number_of_Rows: 2
- Pitch_Mating_Interface: 5.84mm
- Polarized_to_Mating_Part: Yes
- Stackable: No
- Temperature_Range_Operating: -40° to +125°C
- Current_Maximum_per_Contact: 30.0A
- Material_Info: N/A
- Agency_Certification: CSA UL LR18689 E152602
- UPC: 822350191579
- Mates_With: 194320001 Female Receptacle
- Use_With: 19431 Male Terminal
- EU_ELV: Not Relevant
- EU_RoHS: Compliant
- REACH_SVHC: Not Contained
- Halogen-Free_Status: Low-Halogen
