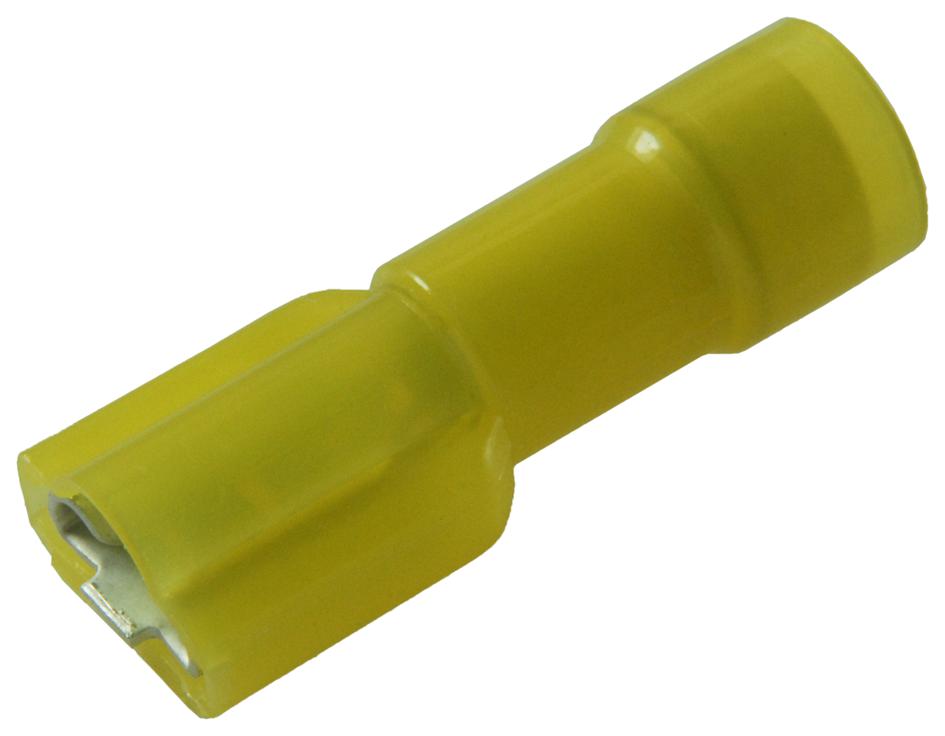

MOLEX 196060004 Quick Disconnect Terminal
The MOLEX 19606-0004 is an Avikrimp Quick Disconnect terminal, specifically designed for secure and efficient termination of wires. This female terminal is engineered to accommodate wire sizes from 5.00mm² to 3.30mm² (10-12 AWG). Constructed with a brass body and tin plating for both mating and termination surfaces, it ensures excellent conductivity and corrosion resistance. The terminal's closed barrel design provides a secure grip on the wire, while its straight orientation simplifies integration into various systems. It is commonly used in automotive, industrial equipment, and consumer electronics applications where reliable and quick connections are essential. This RoHS compliant terminal is a dependable solution for a wide range of wire termination needs.
MOLEX 196060004 Quick Disconnect Terminal Specifications:
- Part Number: 0196060004
- Status: Active
- Overview: Standard Quick-Disconnect Terminals
- Description: Avikrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm²) Wire
- Wire Size AWG: 10, 12
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 1.713/g
- Orientation: Straight
- Packaging Type: Reel
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Temperature Range - Operating: -65° to +105°C
- Insulation Nylon (PA): Yes
- Flammability: 94V-2
- Gender: Female
- Tab Thickness: 0.81mm
- Tab Width: 6.35mm
- Voltage - Maximum: 300V
- EU RoHS: Compliant
- Halogen-Free Status: Low-Halogen
- Engineering Number: C-5293Z
Buy the 19606-0004 MOLEX Quick Disconnect Terminal | myMectronic
Purchase the MOLEX 19606-0004 Quick Disconnect Terminal securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 196060004?
You can click on the BUY or RFQ button to purchase 196060004 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 196060004?
You can download the 196060004 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 196060004?
MOLEX
