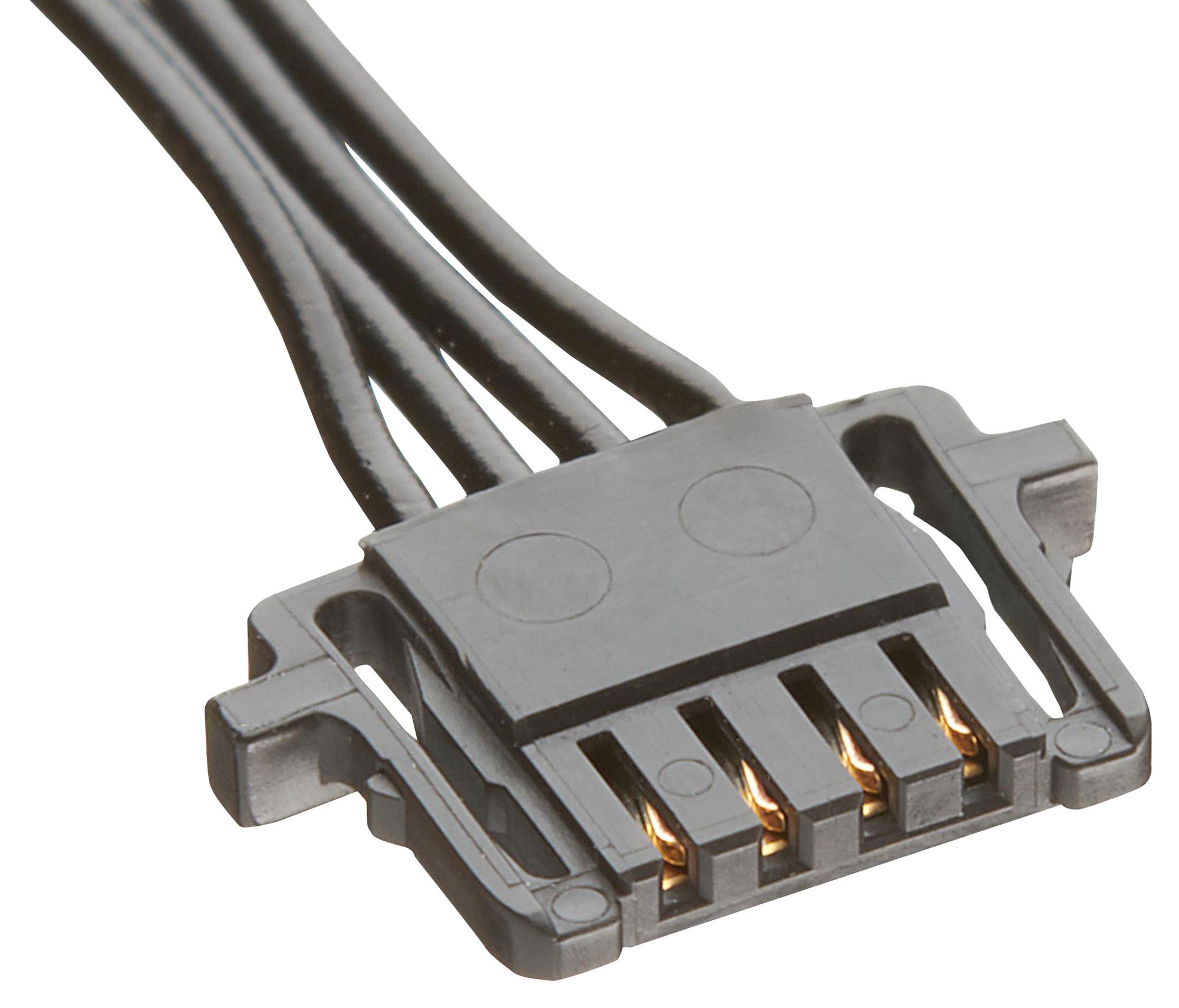

MOLEX 151310401 Pico-Lock Connector System
The Pico-Lock-to-Pico-Lock cable assembly is a compact, high-quality signal connector system designed for wire-to-board applications. Made with durable materials, it features a 1.00mm pitch, single row configuration, and a 100mm length. The assembly includes female-to-female connectors with overmolded construction, ensuring secure and reliable connections. Suitable for various electronic devices requiring signal transmission, this assembly offers easy crimp or compression termination, high-temperature thermoplastic housing, and gold-plated copper alloy contacts that support up to 2.0A and 150V, meeting industry standards for safety and performance.
MOLEX 151310401 Pico-Lock Connector System Specifications:
- Pitch: 1.00mm
- Connector type: Pico-Lock-to-Pico-Lock
- Assembly configuration: Overmolded, connector to connector
- Cable length: 100.00mm
- Number of circuits: 4
- Color: Black
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High-Temperature Thermoplastic
- Wire Insulation Diameter: 0.60mm
- Wire Size AWG: 28
- Electrical: Current - Max 2.0A, Voltage - Max 150V
- Reference Drawing Number: 151310400-000
- RoHS & China RoHS compliant, halogen-free, no REACH SVHC
- Certifications: UL 1571
- Application: Signal, wire-to-board
- Series: 15131
Buy the Molex Series 15131 Pico-Lock Connector: 151310401
Purchase the Molex Pico-Lock connector system online today to ensure secure, reliable signal connections in your electronic projects. Designed with a 1.00mm pitch and overmolded construction, this 4-circuit assembly offers ease of installation with crimp or compression termination options. Made from high-temperature thermoplastic with gold-plated copper contacts, it supports up to 2.0A and 150V. Ideal for wire-to-board signal applications, the assembly’s compact black design guarantees durability and excellent performance across various environments.
Buy Molex 151310401 now and experience unmatched reliability and performance with durable, high-quality signal connector assemblies.
