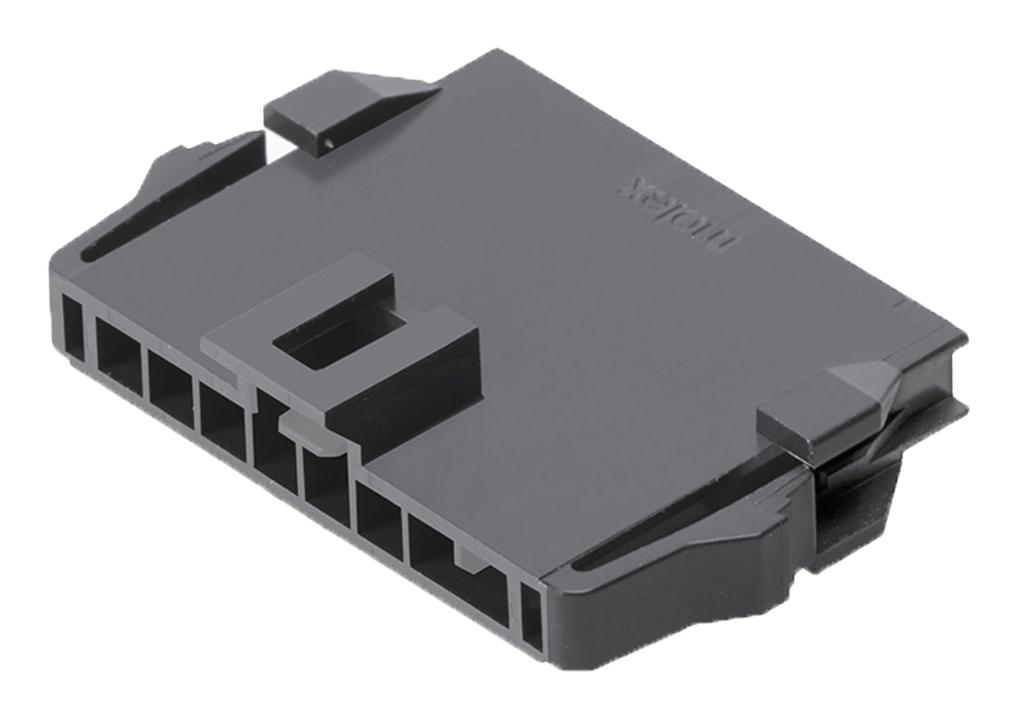

MOLEX 2002771207 Nano-Fit Power Connectors
Nano-Fit Power Connectors feature a compact 2.50mm pitch, fully isolated terminals, and multiple keying options for reliable, high-density connections in industrial, automotive, and consumer electronics. These connectors protect against terminal damage during handling and mating, providing redundancy for long-term performance. They enable multi-layer PCB designs, reducing real estate costs, and ensure consistent signal integrity with low mating force and secure locking mechanisms. Suitable for diverse applications including appliances, automotive, aerospace, and healthcare, these connectors offer RoHS compliance and halogen-free construction for safety and environmental standards.
MOLEX 2002771207 Nano-Fit Power Connectors Specifications:
- Voltage (Max.): 250V
- Current (Max.): 6.54A
- Contact Resistance: 10 milliohms
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Insertion Force to PCB: SN
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 cycles (tin), 50 cycles (gold)
- Housing Material: Receptacle: Nylon UL 94V-0; Header: LCP UL 94V-0
- Contact Material: High-Conductivity Copper
- Plating: Tin, 381) (15"), Gold, 762) (30p")
- Solder Tail Area Plating: Tin
- Operating Temperature: -40 to +105°C (Tin), -40 to +115°C (Gold)
- PCB Thickness: 1.60mm and 2.40mm
- RoHS Compliant: Yes
- Halogen Free: Yes
Buy the Molex 200277 Power Connectors – Reliable Nano-Fit for Industrial Applications
Purchase Molex Nano-Fit Power Connectors today to ensure secure, compact, and reliable connections across your projects. Designed for high-density PCB applications, these connectors feature fully isolated terminals, multiple keying options, and robust locking mechanisms to prevent backout and ensure proper mating. They support diverse industries such as industrial automation, automotive, aerospace, and consumer electronics. With RoHS compliance and halogen-free materials, these connectors not only meet safety standards but also offer easy assembly with pick-and-place capabilities. Upgrade your electronic systems with Nano-Fit connectors for optimal performance and long-term reliability.
Buy Molex 200277 Power Connectors now and experience unmatched reliability and high-density performance for your electronic assemblies.
