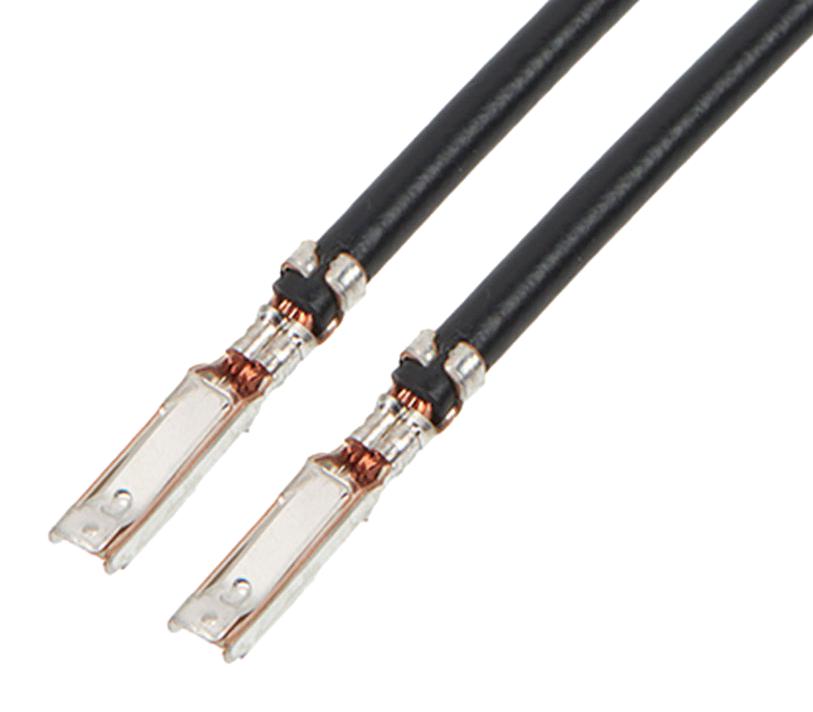

MOLEX 2175201121 Mizu-P25 Pre-Crimped Lead
The MOLEX 217520-1121 is a pre-crimped lead cable assembly specifically engineered for Mizu-P25 connectors. This assembly provides a ready-to-use solution for wire-to-wire signal transmission, eliminating the need for on-site crimping. With a tin plating for enhanced conductivity and a 75.00mm length, it offers a convenient and reliable connection. The 22 AWG wire gauge ensures adequate current carrying capacity for various signal applications. This component is ideal for applications requiring pre-terminated connections and simplifies assembly processes.
MOLEX 2175201121 Mizu-P25 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mizu-P25
- cable_length: 75.00mm
- wire_size: 22 AWG
- wire_insulation_diameter: 1.40-1.90mm
- wire_cable_type: 1x0.50mm² FLRY-B
- voltage_max: 125V
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- net_weight: 0.723/g
- single_ended: No
- termination_interface_style: Crimp or Compression
- circuits_loaded: 1
- color_resin: Black
- upc: 195842068209
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained
- halogen_free_status: Not Low-Halogen
