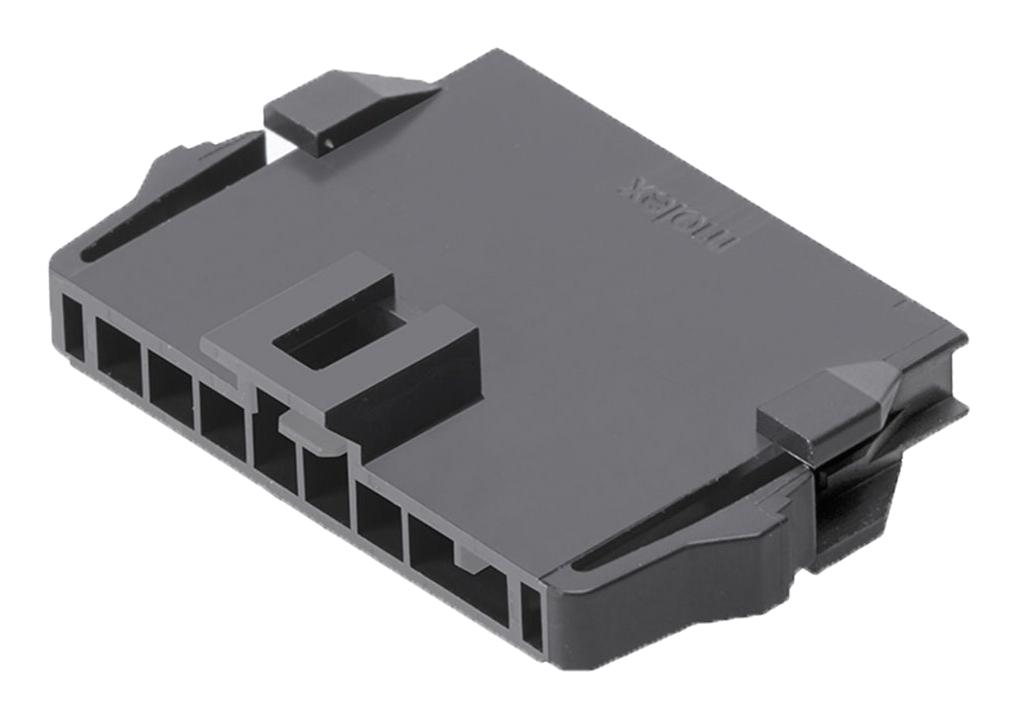

MOLEX 2002771208 Nano-Fit Power Connector
Nano-Fit Power Connectors ensure efficient, space-saving electrical connections with fully isolated terminals, multiple keying options, and color-coding for rapid assembly. These 2.50mm pitch connectors feature a compact design up to 69% smaller than competitors, enabling multi-layer PCB use and reducing costs. They provide reliable, long-term performance with secondary contact paths, ultra-low mate force, and positive-lock housings to prevent disconnection. Suitable for automotive, consumer electronics, industrial, aerospace, and medical applications, these connectors offer excellent signal integrity, high durability, and compliance with RoHS standards.
MOLEX 2002771208 Nano-Fit Power Connector Specifications:
- Voltage (Max.): 250V
- Current (Max.): 6.54A
- Contact Resistance: 10 milliohms change over life
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Insertion Force to PCB: SN
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 cycles (Tin), 50 cycles (Gold)
- Housing Materials: Receptacle - Nylon UL 94V-0, Header - LCP UL 94V-0
- Contact Material: High-Conductivity Copper
- Plating: Tin or Gold options
- Operating Temperature: -40 to +105°C (Tin), -40 to +115°C (Gold)
- PCB Thickness: 1.60mm and 2.40mm
- RoHS and Halogen Free: Yes
- Glow-Wire Capable: Yes
- Packaging: Terminals — Reel, Headers — Tray, Receptacles — Bag
- UL File No.: 29179, CSA File No.: LR19980
Buy the Molex 2002771208 – Reliable Nano-Fit Power Connectors for Industrial Applications
Purchase the Nano-Fit Power Connector today and experience space-efficient, highly reliable electrical connections suitable for automotive, consumer electronics, industrial applications, and healthcare equipment. Designed with fully isolated terminals, keying options, and color-coding, it enhances assembly speed and prevents cross-mating errors. Its compact size up to 69% smaller than competitors allows for multi-layer PCB use, reducing costs. With excellent signal integrity, high durability for over 50 mating cycles, and RoHS compliance, this connector is ideal for long-term, high-performance applications ensuring safety and efficiency.
Get Molex 2002771208 today—designed for space-saving, high-reliability connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 2002771208?
You can click on the BUY or RFQ button to purchase 2002771208 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2002771208?
You can download the 2002771208 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2002771208?
MOLEX
