MOLEX 2162731060 SL Male-to-Pigtail Cable Assembly

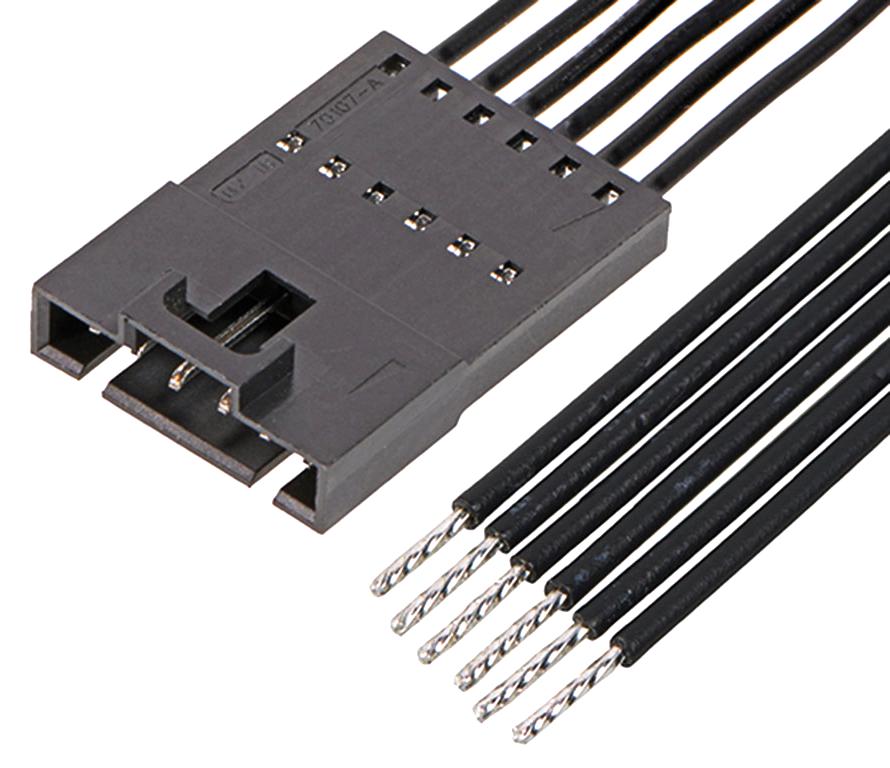

The MOLEX 2162731060 is a discrete wire assembly designed for signal transmission in wire-to-wire applications. This off-the-shelf cable assembly features a male-to-pigtail connector configuration, a 50.00mm length, and 6 circuits. It utilizes phosphor bronze for the metal components, tin plating for both mating and termination interfaces, and a black polyester alloy resin. With a maximum current rating of 3.0A and a maximum voltage of 600V AC/DC, this assembly is suitable for various industrial and commercial applications requiring reliable signal connectivity.
MOLEX 2162731060 SL Male-to-Pigtail Cable Assembly Specifications:
- product_family: Cable Assemblies
- series: 216273
- application: Signal, Wire-to-Wire
- configuration: Single Ended
- connector_type: SL-to-Pigtail
- cable_length: 50.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- material_resin: Polyester Alloy
- net_weight: 3.485/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 2.54mm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.63mm max.
- wire_size_awg: 22
- wire_cable_type: UL 11028
- current_maximum_per_contact: 3.0A
- voltage_maximum: 600V AC/DC
- upc: 193264731640
