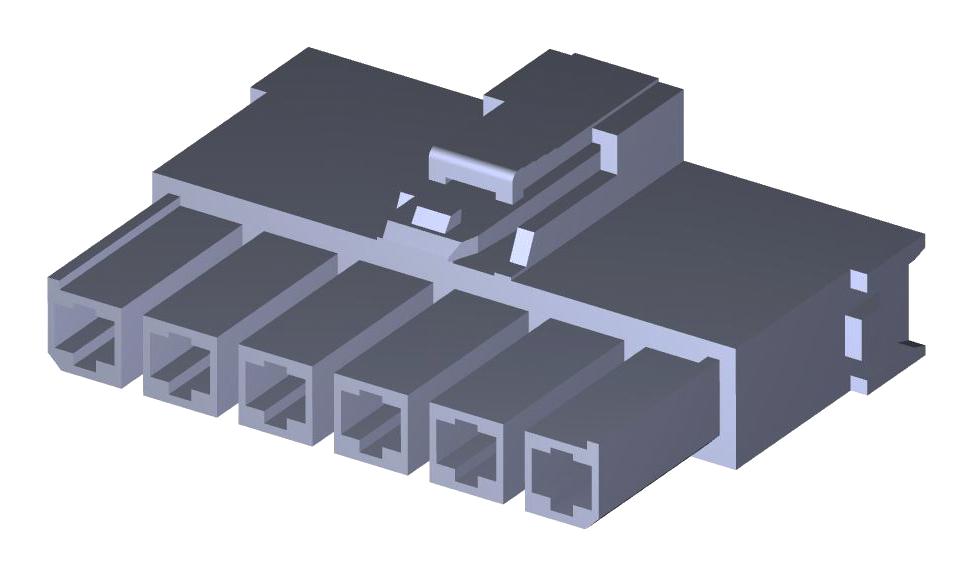

MOLEX 2004561216 Power Connector Housing
The Mega-Fit power connector housing is designed for power applications, featuring a single row, 6-circuit receptacle with UL 94V-0 flammability rating and glow-wire capability. Made from durable nylon resin, it offers reliable locking to mating parts and a pitch of 5.70mm for secure wire-to-board connections. Suitable for operating temperatures from -40°C to +105°C, this black housing is compatible with Mega-Fit headers and crimp terminals, ensuring a safe, high-performance power distribution in electronic assemblies.
MOLEX 2004561216 Power Connector Housing Specifications:
- Series: 200456
- Number of Circuits: 6
- Color: Black
- Material: Nylon resin
- Temperature Range: -40°C to +105°C, up to +120°C
- Pitch - Mating & Termination Interface: 5.70mm
- Glow-Wire Capable: Yes
- Lock to Mating Part: Yes
- Gender: Receptacle
- Packaging Type: Bag
- Maximum Current per Circuit: Not specified
- Applications: Power, Wire-to-Board
- Compliance: RoHS, China RoHS
Buy the Buy Molex Mega-Fit Power Connectors Part Number 2004561216 Online
Experience the high-performance Molex Mega-Fit power connector housing with six circuits, UL 94V-0 flame rating, and glow-wire capability. Crafted from durable nylon resin, it offers exceptional locking features and a 5.70mm pitch for reliable wire-to-board power connections. Operating efficiently from -40°C to +105°C, this black housing ensures safety and durability in electronic assemblies. Perfect for power distribution and electronic device manufacturing, this connector provides secure attachment, compliance with RoHS standards, and compatibility with Mega-Fit headers and crimp terminals for versatile applications.
Get Molex Mega-Fit 2004561216 today—designed for secure, reliable power connections with robust locking and high-temperature performance.
Frequently Asked Questions
Where can I buy MOLEX 2004561216?
You can click on the BUY or RFQ button to purchase 2004561216 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2004561216?
You can download the 2004561216 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2004561216?
MOLEX
