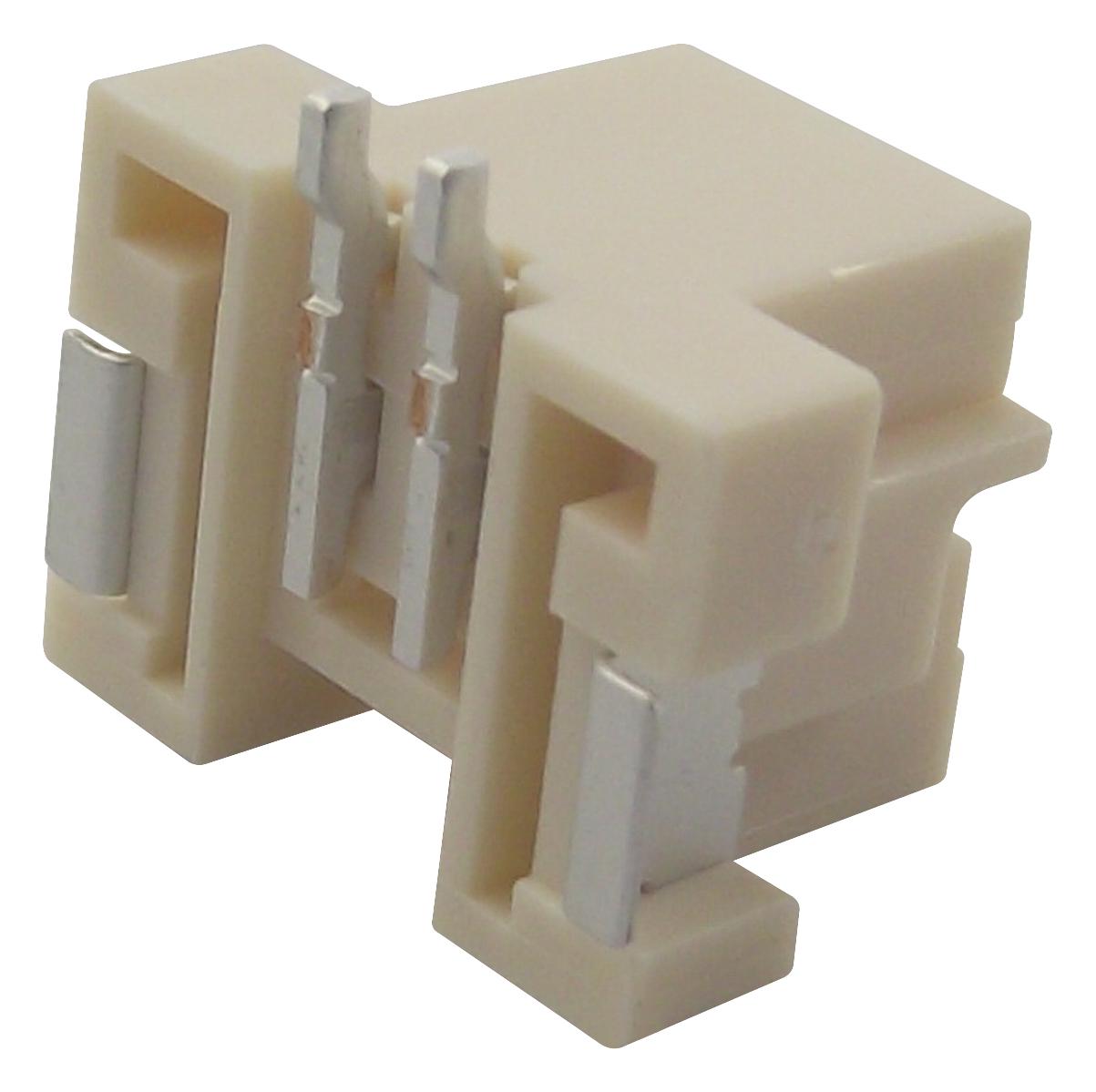

MOLEX 5600200230 Wire-to-Board Connector
The DuraClik Wire-to-Board Header is a reliable electrical connection component designed for easy mating and durability in various applications. It features a single row, vertical orientation with 2 circuits, gold over nickel plating, and a 2.00mm pitch for secure connectivity. Made from polyamide with copper alloy contacts, it supports operating temperatures from -40°C to +105°C, or up to +125°C with related series. Certified for UL, RoHS, and REACH compliance, this connector is suitable for industrial and electronics uses requiring robust performance and long-lasting connections.
MOLEX 5600200230 Wire-to-Board Connector Specifications:
- Number of Circuits: 2
- Color - Resin: Natural
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Nickel
- Material - Resin: Polyamide
- Net Weight: 0.506g
- Orientation: Vertical
- Temperature Range - Operating: -40°C to +105°C; -40°C to +125°C (with certain series)
- Voltage - Maximum: 125V AC/DC
- Current - Maximum per Contact: 3.0A
- Pin pitch: 2.00mm
- Solder Process Temperature Max: 255°C
- Durability (mating cycles max): Not specified
- Flammability & Certifications: UL listed, RoHS compliant, ELV compliant
- Packaging: Embossed tape on reel
- Application: Signal wire-to-board connections
Buy the Buy Molex DuraClik Wire-to-Board Header Part Number 5600200230 Online
Enhance your electronic and industrial projects with the Molex DuraClik wire-to-board connector, featuring 2 circuits, gold over nickel plating, and a 2.00mm pitch. Designed for easy mating, high durability, and stable performance from -40°C to +125°C, this connector supports efficient cable management and reliable connections. Certified for UL, RoHS, and REACH, it ensures safety and compliance. Suitable for signal wiring in various industrial electronics, this connector is a crucial component for long-lasting, professional-grade assemblies, now available for quick online purchase.
Get Molex 5600200230 today—built for reliable connections, high durability, and easy assembly in industrial and electronic applications.
