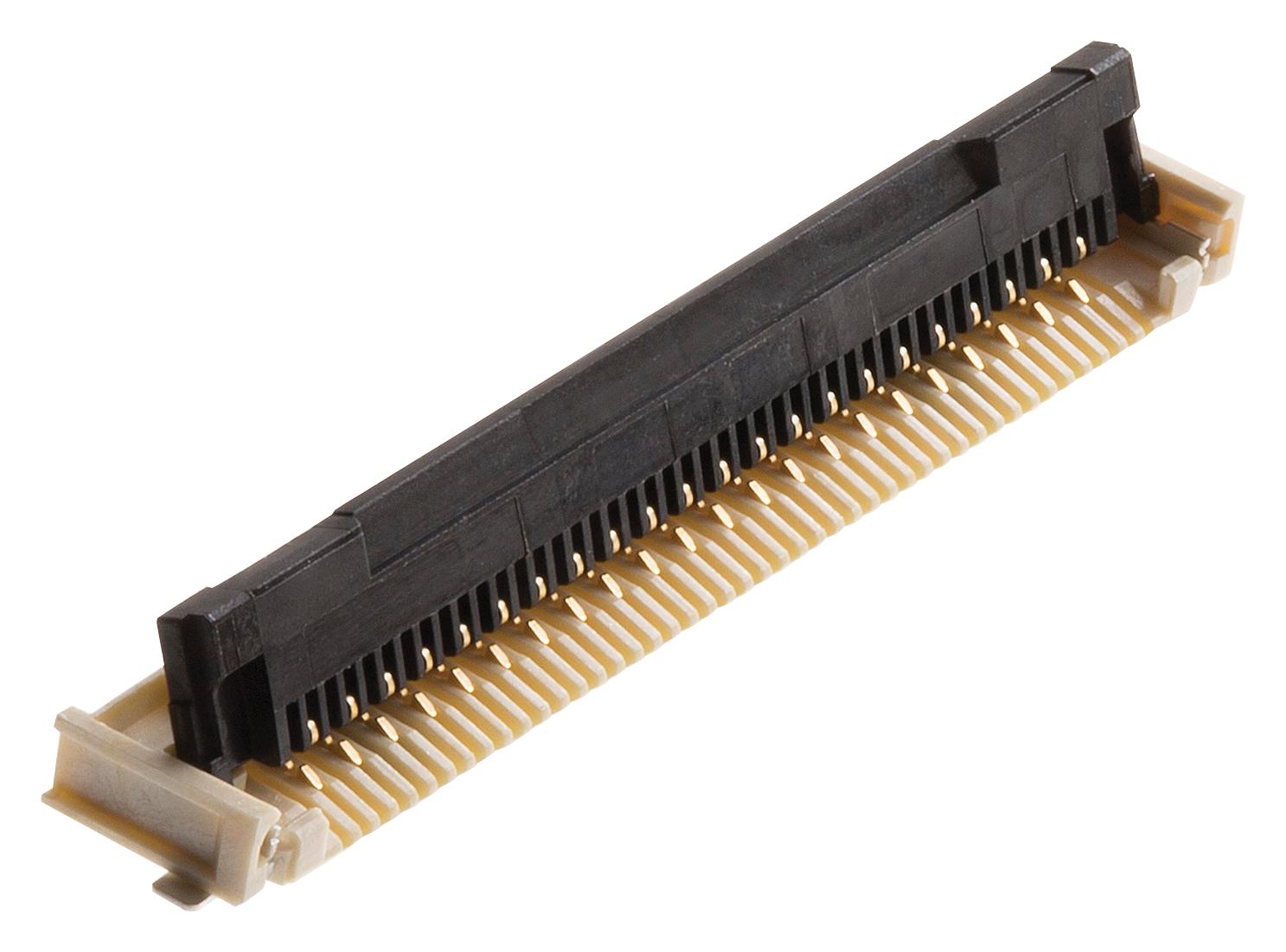

MOLEX 2005280090 FFC FPC Connector
The Easy-On FFC and FPC connectors are engineered for compact and reliable applications, featuring a positive lock and dual-contact design to ensure secure connections. They support various actuator types, including ZIF, slider, and flip options, making cable management straightforward. These connectors incorporate movable terminals for enhanced contact retention, compatible with various cable tab and locking styles, suitable for both standard and shielded FFC connectors. Grounding terminals and polarizing keys improve stability, making them ideal for high-speed, high-frequency signals like LVDS, in automotive, consumer, industrial, and medical electronics.
MOLEX 2005280090 FFC FPC Connector Specifications:
- Pitch - Mating Interface: 1.00mm
- Number of Circuits: 9
- Height: 1.90mm
- Material - Metal: Phosphor Bronze
- Plating - Mating: Gold over Nickel
- Plating - Termination: Gold over Nickel
- Resin: Liquid Crystal Polymer
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
- Entry Angle: 90° Angle
- Color - Resin: Beige
- Durability (mating cycles max): Not specified in OCR, externally verified to support high cycles
- Connection Type: Surface Mount, ZIF, Double Bottom
- Compatibility: Supports standard and shielded FFC connectors, with grounding terminals
- Packaging: Embossed Tape on Reel
- Product Family: FFC-FPC
Buy the Buy Molex FFC-FPC Part Number 2005280090 Online
Purchase the Molex FFC FPC connector 2005280090 online today for high-quality, reliable connections in compact electronic devices. Designed for versatility, this connector features a positive lock mechanism, dual-contact design, and multiple actuator options like ZIF, slider, and flip types. It supports high-speed signals such as LVDS and comes with grounding terminals for improved stability. With a durable construction and support for high mating cycles, it is ideal for use in automotive, consumer electronics, industrial, and medical applications, ensuring secure and stable cable connections in tight spaces.
Buy Molex 2005280090 now and experience unmatched reliability and performance in compact electronic connections with excellent contact retention.
