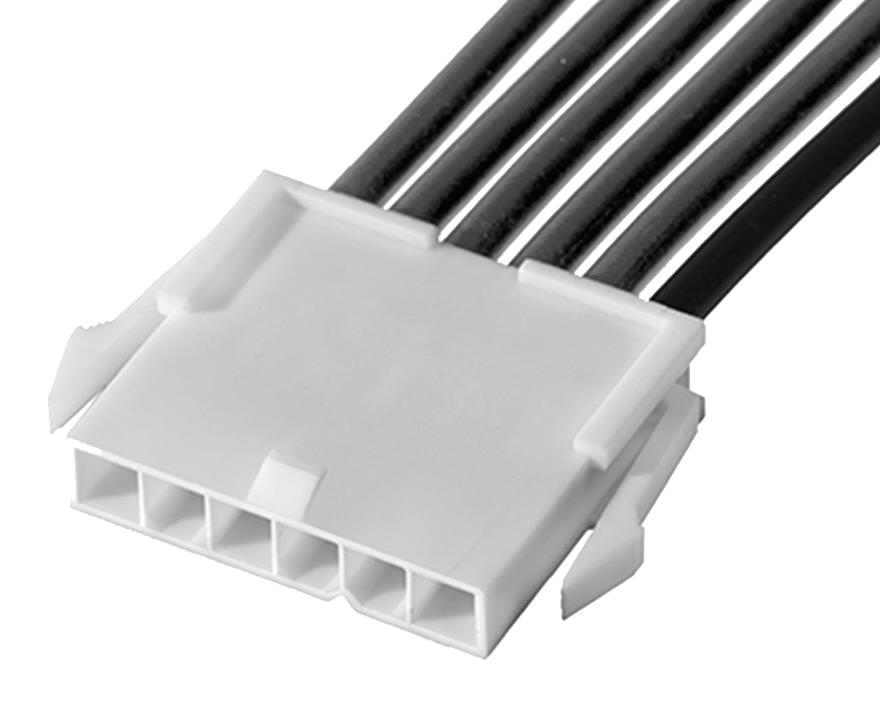

MOLEX 2153211061 Power Connector
The Mini-Fit Junior Female-to-Pigtail Off-the-Shelf Cable Assembly is designed for power connections in electronic applications. Measuring 150mm in length, it features six circuits with tin plating on brass contacts, ensuring reliable and corrosion-resistant electrical performance. The assembly utilizes nylon insulation, supporting wire sizes from 16 gauge, with a maximum current of 9.0A and voltage of 600V. Suitable for wire-to-wire or wire-to-board configurations, it is compliant with RoHS, UL 94V-0, and halogen-free standards, making it a versatile and robust component for various industrial power systems.
MOLEX 2153211061 Power Connector Specifications:
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Cable Length: 150.00mm
- Number of Circuits: 6
- Color - Resin: Black
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Pitch - Mating Interface: 4.20mm
- Wire Insulation Diameter: 2.20mm
- Wire Size AWG: 16
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Plating min - Mating: 0.889um
- Plating min - Termination: 0.889um
- Certification: UL 1015
- Packaging Type: Bag
- Net Weight: 24.075g
- Application: Power, Wire-to-Wire, Wire-to-Board
- Assembly Configuration: Connector to Connector
- Status: Active
- RoHS Compliance: Yes
- Halogen-Free: No
- EU RoHS: China RoHS Compliant
Buy the Molex 2153211061 – Reliable Power Connector for Industrial Applications
Experience reliable power transmission with this high-quality power connector assembly, featuring six circuits, 150mm cable length, and tin-plated contacts. Designed for industrial applications, it offers excellent electrical performance with a maximum current of 9A and voltage of 600V. Made with durable nylon insulation and brass contacts, this assembly ensures long-lasting durability. Its compact male-to-female connection suits wire-to-wire and wire-to-board configurations, all compliant with RoHS and UL standards, making it a dependable choice for professional power and electronic systems.
Get Molex 2153211061 today—built for precision, durability, and efficient power distribution in industrial systems.
Frequently Asked Questions
Where can I buy MOLEX 2153211061?
You can click on the BUY or RFQ button to purchase 2153211061 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153211061?
You can download the 2153211061 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153211061?
MOLEX
