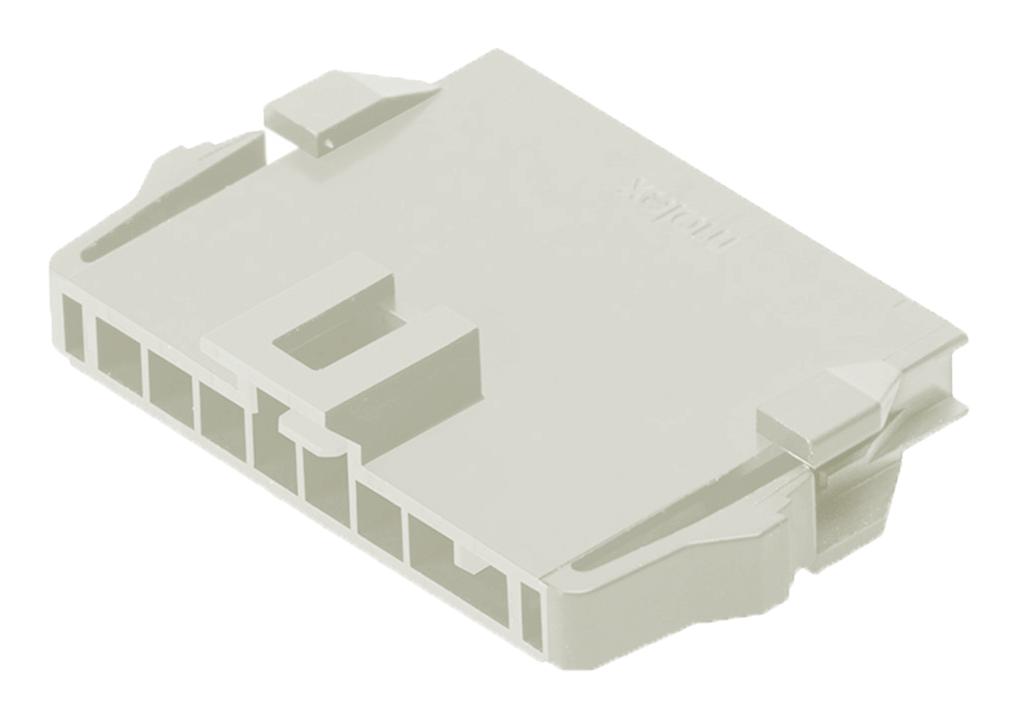

MOLEX 2014442206 Nano-Fit Power Connectors
Nano-Fit Power Connectors feature a compact 2.50mm pitch design, fully isolated terminals, and multiple keying options, ensuring secure and reliable connections in various demanding applications such as consumer electronics, automotive, and industrial equipment. They offer ultra-low mating forces, redundancy for long-term performance, and are RoHS compliant. With a small footprint, they support multi-layer boards, reduce cost, and enable quick pick-and-place assembly. Designed for durability, these connectors are suitable for high-circuit applications requiring stable contact and efficient space utilization.
MOLEX 2014442206 Nano-Fit Power Connectors Specifications:
- Voltage (Max.): 250V
- Current (Max.): 6.54A
- Contact Resistance: 10 milliohms change over life
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 tin, 50 gold cycles
- Housing Material: Receptacle nylon UL 94V-0, Header LCP UL 94V-0
- Contact Material: High-conductivity copper
- Plating: Tin, 381) gold, 762) gold, with nickel underplating
- PCB Thickness: 1.60mm, 2.40mm
- Operating Temperature: -40°C to +105°C (tin), -40°C to +115°C (gold)
Buy the Molex 2014442206 – Reliable Nano-Fit Power Connectors for Industrial Applications
Order Molex Nano-Fit Power Connectors today to ensure secure, space-saving, and high-reliability power connections for a wide range of industrial, automotive, and consumer applications. Designed with multiple keying options, ultra-low mating force, and durable contact materials, these connectors support high-circuit equipment, multi-layer boards, and quick assembly. Their compact size and compliant RoHS materials make them ideal for demanding electronics environments, enhancing performance and reducing costs while providing long-term, stable electrical performance. Purchase now for fast delivery and expert support.
Buy Molex 2014442206 now and experience unmatched reliability and performance in compact high-current power connections.
