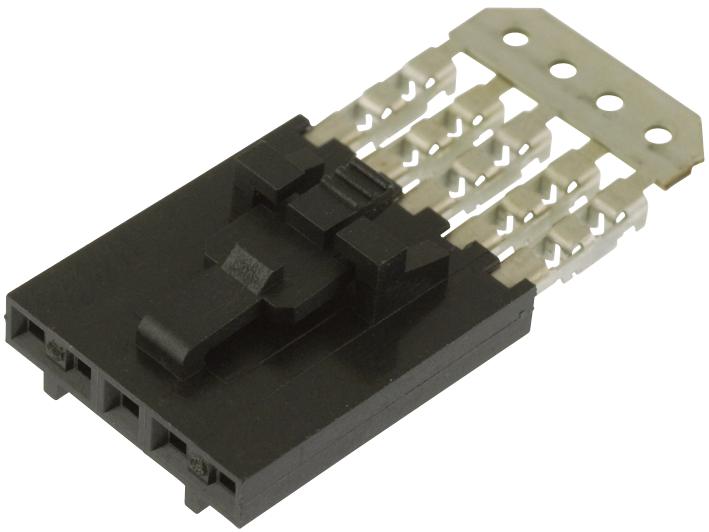

MOLEX 14562082 Insulation Displacement Connector Assembly
The MOLEX 14-56-2082 is a versatile insulation displacement connector assembly designed for efficient wire termination. With a 2.54mm pitch and 8 circuits, it provides a compact and reliable connection solution. The positive lock mechanism ensures secure mating, while the gold plating on the contacts enhances conductivity and corrosion resistance. This connector is commonly used in industrial automation, instrumentation, and other applications requiring robust and space-saving connectivity.
MOLEX 14562082 Insulation Displacement Connector Assembly Specifications:
- Pitch: 2.54mm
- Circuits: 8
- Wire Size: 24 AWG
- Plating: Gold (Au) 0.38µm
- Material - Resin: Polyester Alloy
- Material - Metal: Phosphor Bronze
- Flammability: 94V-0
- Operating Temperature: -40° to +105°C
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V
- Durability (mating cycles max): 50
- Lock to Mating Part: Yes
- Stackable: Yes
- PCB Retention: None
- Net Weight: 1.216/g
- Material - Plating: Gold Tin 1.905µm
- Termination Interface: IDT or Pierce
- Wire Insulation Diameter: 1.35mm max.
- Wire/Cable Type: Discrete Wire, Ribbon Cable
Buy the 14-56-2082 MOLEX Insulation Displacement Connector Assembly | myMectronic
Purchase the MOLEX 14-56-2082 Insulation Displacement Connector Assembly securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 14562082?
You can click on the BUY or RFQ button to purchase 14562082 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 14562082?
You can download the 14562082 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 14562082?
MOLEX
