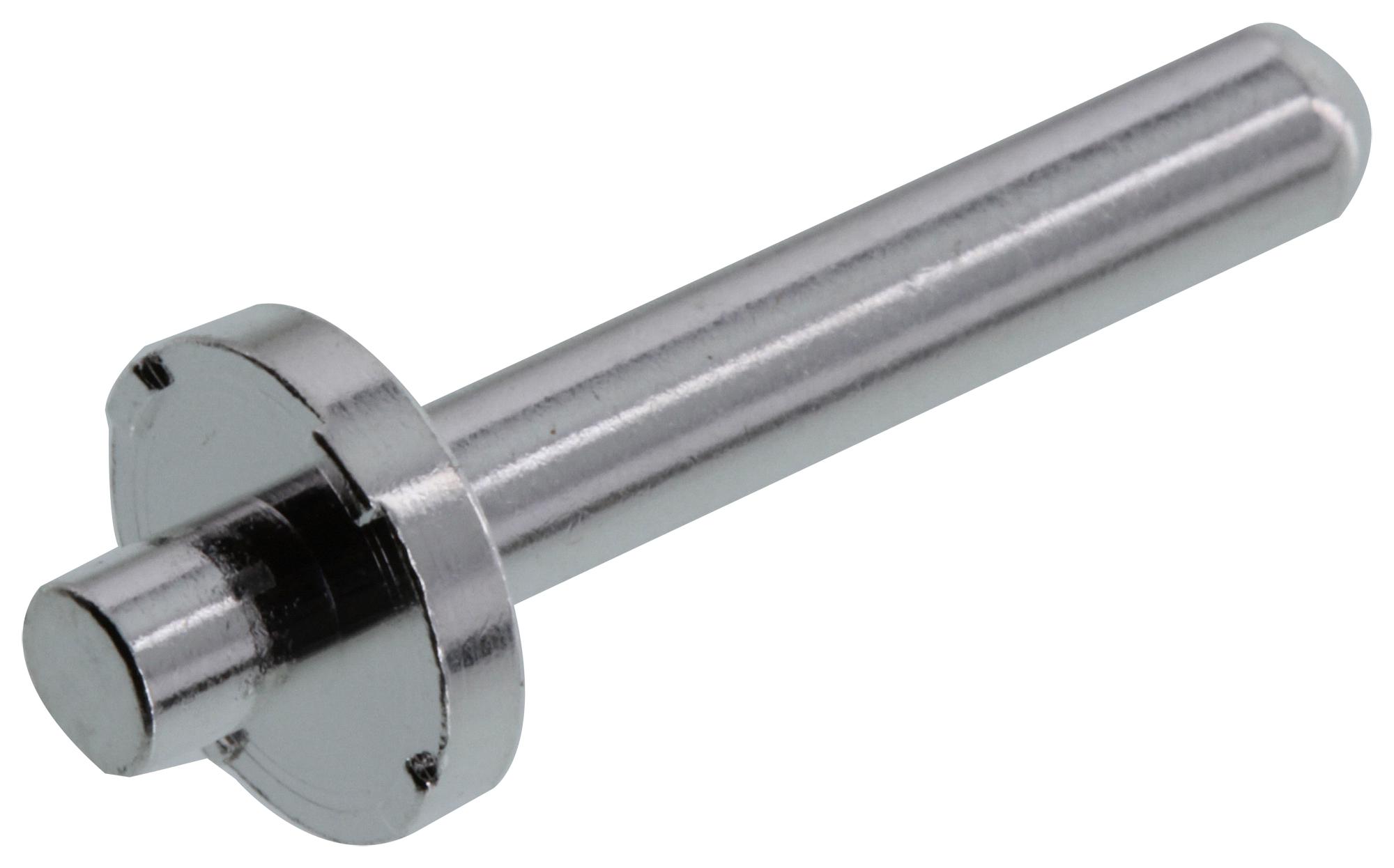

MOLEX 2032631234 Coeur CST Male Surface Mount Pin
The MOLEX 203263-1234 is a component of the Coeur CST High-Current Interconnect System, specifically a male surface mount pin. This pin is engineered for high-power applications requiring a reliable and robust connection. It boasts a 3.40mm diameter and a 20.00mm length, with a vertical orientation and a gold plating on the mating interface for superior conductivity and a silver plating on the termination. The pin is designed to withstand a maximum current of 75.0A and a maximum voltage of 600V, ensuring safe and efficient power transfer. It is RoHS compliant and features a low-halogen status, aligning with environmental standards. This pin is ideal for use in power distribution systems, battery management, and other demanding electrical applications.
MOLEX 2032631234 Coeur CST Male Surface Mount Pin Specifications:
- overview: Coeur CST High-Current Interconnect System
- application: Power
- current_max_numeric: 75.0A
- circuits_loaded: 1
- circuits_maximum: 1
- diameter: 3.40mm
- durability_mating_cycles_max: 200
- material_metal: Copper Alloy
- material_plating_mating: Gold
- material_plating_termination: Silver
- net_weight: 2.011/g
- number_of_rows: 1
- orientation: Vertical
- packaging_type: Tray
- temperature_range_operating: -40° to +105°C
- voltage_max: 600V
- material_info_reference_drawing_numbers: Application Specification 2043130018-AS-000, Product Specification 2043130018-PS-000
