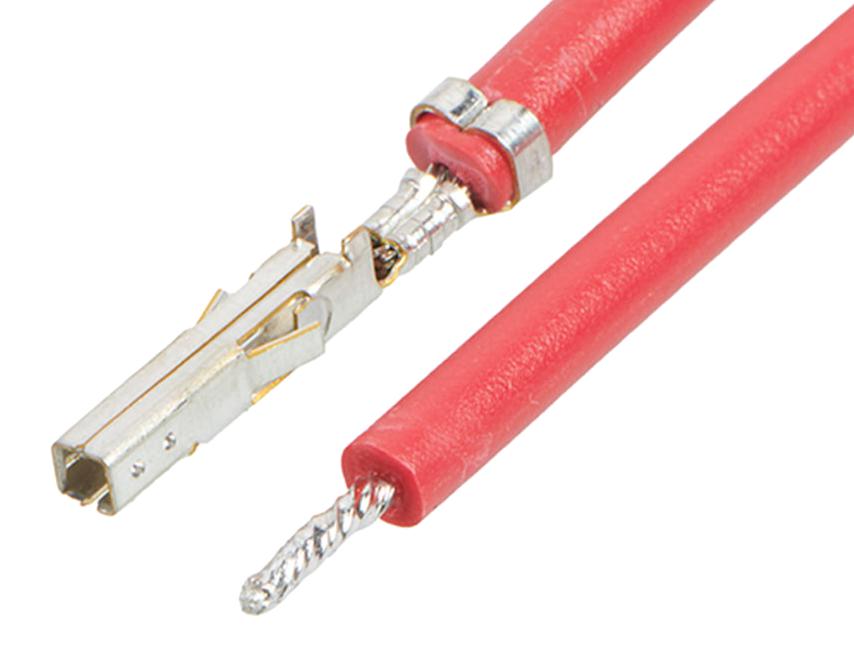

MOLEX 2153412124 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-2124 is a pre-crimped lead cable assembly designed for versatile applications including power distribution, wire-to-board connections, and wire-to-wire linking. This assembly incorporates a Mini-Fit Jr. female connector transitioning to a pigtail, ensuring ease of integration. The tin plating on both mating and termination surfaces provides excellent conductivity and corrosion resistance. Suitable for industrial machinery, automotive systems, and consumer electronics, this cable assembly simplifies wiring processes and enhances system reliability.
MOLEX 2153412124 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 6.929/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264559725
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_rohs: D(2020)4578-DC
- halogen_free: Yes
- low_halogen: Not Low-Halogen
