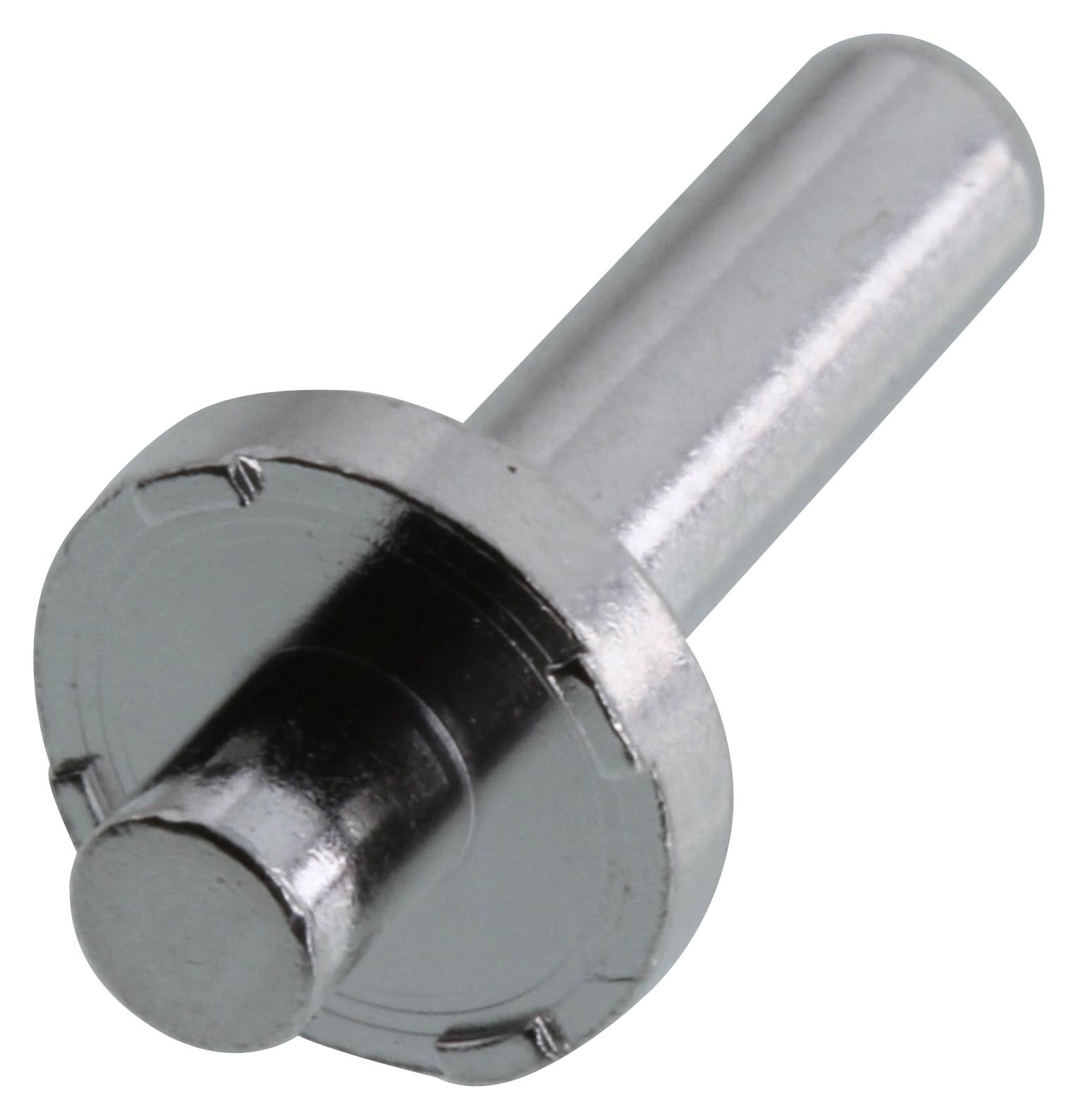

MOLEX 2032631334 Coeur CST Male Surface Mount Pin
The MOLEX 2032631334 is a high-performance male surface mount pin within the Coeur CST High-Current Interconnect System. Designed for demanding power applications, this pin offers a robust connection with a 3.40mm diameter and a maximum current rating of 75.0A. It's constructed with a copper alloy material and features gold plating on the mating side and silver plating on the termination side for excellent conductivity and corrosion resistance. The pin is vertically oriented and packaged in a tray, making it suitable for automated assembly processes. Its durability is rated for up to 200 mating cycles, ensuring reliable performance over time. It is compliant with RoHS standards and is low-halogen.
MOLEX 2032631334 Coeur CST Male Surface Mount Pin Specifications:
- overview: Coeur CST High-Current Interconnect System
- application: Power
- current_max_numeric: 75.0A
- circuits_loaded: 1
- circuits_maximum: 1
- diameter: 3.40mm
- durability_mating_cycles_max: 200
- material_metal: Copper Alloy
- material_plating_mating: Gold
- material_plating_termination: Silver
- net_weight_g: 1.522
- number_of_rows: 1
- orientation: Vertical
- packaging_type: Tray
- temperature_range_operating_c: -40° to +105°
- voltage_max: 600V
- material_info_drawing_numbers: 2043130018-AS-000, 2043130018-PS-000
- elv: Not Relevant
- china_roh: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
