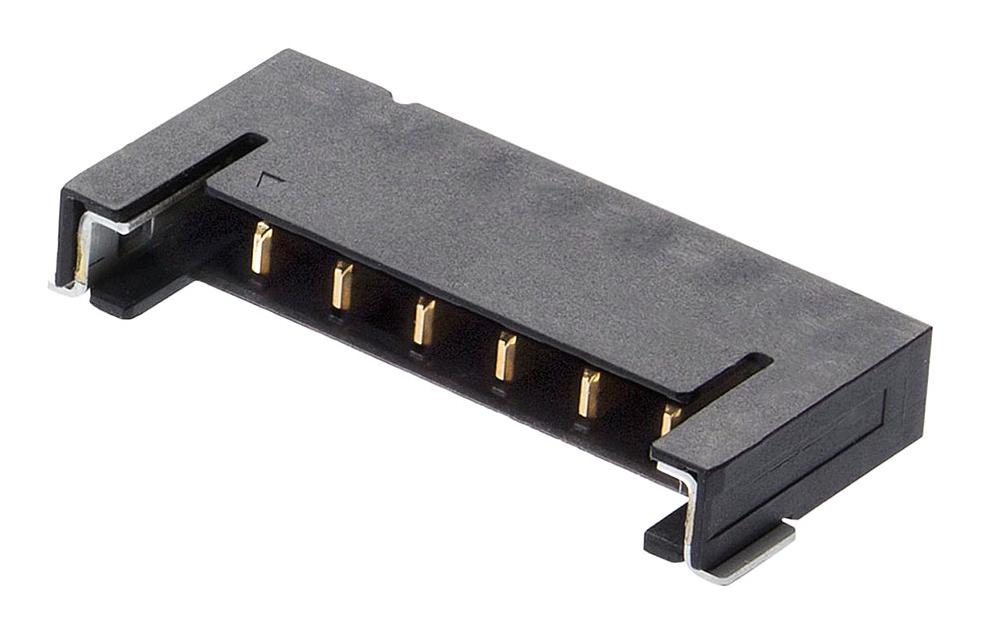

MOLEX 2053380005 Pico-Lock PCB Header
The MOLEX 205338-0005 is a Pico-Lock PCB header within the 205338 series, offering a compact and reliable solution for wire-to-board connections. Designed with a 2.00mm pitch and right-angle orientation, this header is suitable for surface mount applications in various industrial and consumer electronics. The positive lock feature ensures a secure and stable connection, while the gold plating provides excellent conductivity and durability. Its low profile and compact design make it ideal for space-constrained applications.
MOLEX 2053380005 Pico-Lock PCB Header Specifications:
- pitch_mating_interface: 2.00mm
- circuits_loaded: 5
- circuits_maximum: 5
- material_plating_mating: Gold (Au)
- material_resin: Polyamide
- plating_min_mating: 0.100µm
- temperature_range_operating: -40° to +105°C
- current_maximum_per_contact: 6.5A
- voltage_maximum: 250V AC (RMS)/DC
- material_metal: Copper Alloy
- orientation: Right Angle
- termination_interface_style: Surface Mount
- number_of_rows: 1
- mated_height: 2.60mm
- net_weight: 322.450/mg
- pitch_termination_interface: 2.00mm
- color_resin: Black
- durability_mating_cycles_max: 30
- guide_to_mating_part: No
- lock_to_mating_part: Yes
- polarized_to_mating_part: Yes
- shrouded: Fully
- stackable: No
- halogen_free_status: Low-Halogen
