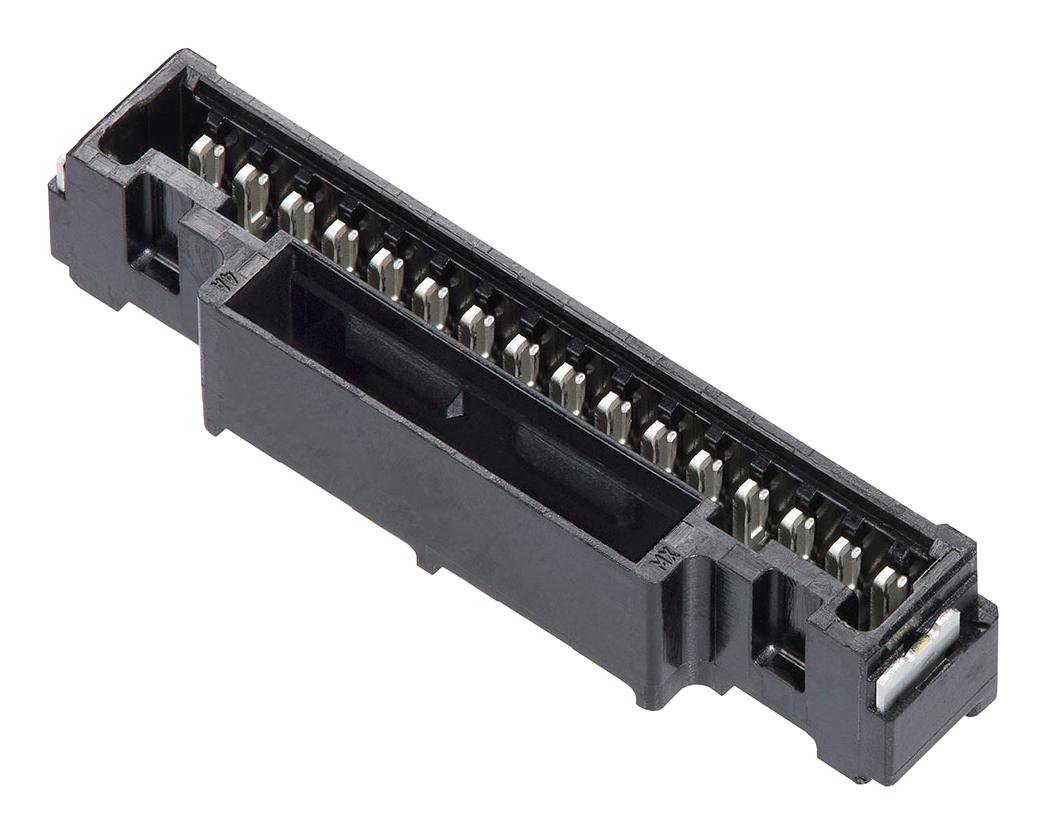

MOLEX 2059570571 Micro-Lock Plus PCB Header
The Micro-Lock Plus wire-to-board connector system offers a 1.25mm pitch, single row PCB header with potting capability, designed for reliable vertical surface mount applications. It features a positive lock mechanism, tin-bismuth plating, and a black color finish, ensuring durability and corrosion resistance. Suitable for assembling complex electronic modules, the connector supports up to 5 circuits, with a maximum current of 3.6A per contact and a maximum voltage of 50V AC/DC. Its robust design guarantees up to 30 mating cycles, making it ideal for high-quality, dependable electronic connections in various industrial and consumer electronics.
MOLEX 2059570571 Micro-Lock Plus PCB Header Specifications:
- Pitch: 1.25mm
- Number of Circuits: 5
- Maximum Circuits: 5
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Material - Resin: Polyamide
- Operating Temperature Range: -40°C to +105°C
- Current per Contact: 3.6A
- Voltage Rating: 50V AC/DC
- Durability (Mating Cycles): 30
- Surface Mount Compatible: Yes
- Guide to Mating Part: Micro-Lock Plus Receptacle Housing
- Package Type: Embossed Tape on Reels
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- RoHS & REACH Compliant, Halogen-Free, Low-Halogen
Buy the Molex Series Micro-Lock Plus PCB Header: 2059570571
Buy your Molex Series Micro-Lock Plus PCB Header today and experience dependable, high-performance connectivity for your electronic assemblies. Designed with a 1.25mm pitch, this 5-circuit surface mount connector features a positive lock, tin-bismuth plating, and robust construction that withstands up to 30 mating cycles. Its potting capability and compact design make it ideal for industrial and consumer electronics requiring secure, corrosion-resistant connections. Easy to install with vacuum pick-up tape, it ensures your projects meet the highest standards of durability and reliability for long-term performance.
Order your Molex Series Micro-Lock Plus PCB Header today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2059570571?
You can click on the BUY or RFQ button to purchase 2059570571 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2059570571?
You can download the 2059570571 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2059570571?
MOLEX
