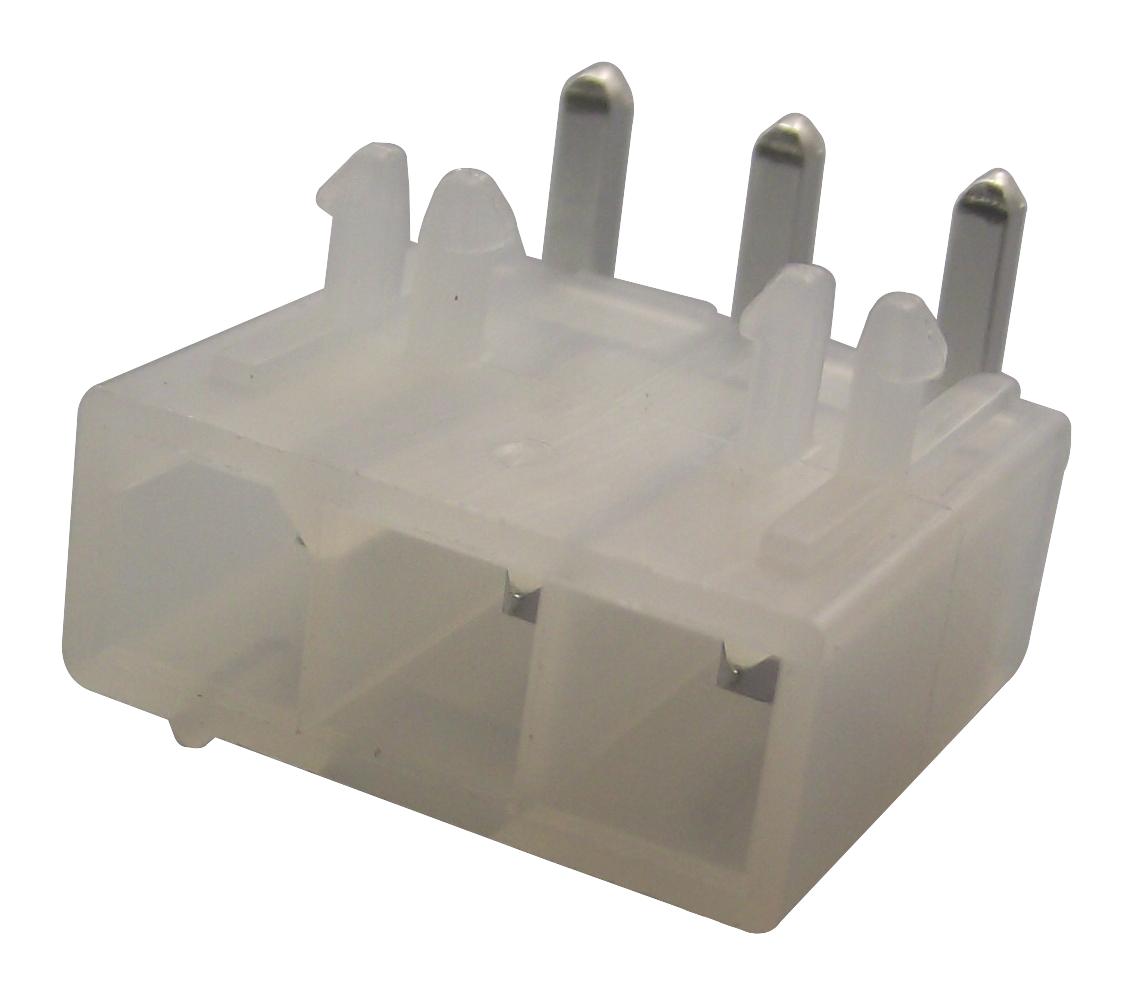

MOLEX 39303035 Power Connector
The Mini-Fit Jr. Power Connector is a single-row, right-angle header with 3 circuits designed for reliable wire-to-board power connections. Made with PA Polyamide Nylon 6/6, it features tin-plated contact surfaces, a 94V-2 flammability rating, and a durable design capable of up to 30 mating cycles. This connector supports a maximum current of 13A per circuit at 600V, with a pitch of 4.20mm and a maximum operating temperature of +105°C. It includes a PCB lock, is fully shrouded, and polarized for easy mating, ideal for power distribution in electronic systems.
MOLEX 39303035 Power Connector Specifications:
- Number of Circuits: 3
- Color - Resin: Natural
- Material - Resin: Nylon
- Material - Metal: Brass
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Flammability: 94V-2
- Durability: 30 mating cycles max
- Current - Max per Circuit: 13A
- Voltage - Max: 600V
- Temperature Range - Operating: -40°C to +105°C
- Pitch - Mating Interface: 4.20mm
- Orientation: Right Angle
- PCB Retention: Yes
- PCB Locator: Yes
- Polarized to PCB: Yes
- Surface Mount Compatible: No
- Shrouded: Fully
- Stackable: No
- Packaging: Bag
- Process Temperature Max: 240°C
- Lead-free Process: Suitable for wave soldering
Buy the Molex Series 5569 Power Connectors: 39303035
Purchase the Molex 39303035 power connector online today and benefit from its robust construction, high current capacity, and secure PCB locking mechanism. Designed for reliable power distribution, this connector supports 13A per circuit at 600V, features a durable nylon body, and is fully shrouded for safety and ease of use. Its compact right-angle design and polarized features make it perfect for space-constrained electronic applications, ensuring a secure connection that maintains performance over numerous mating cycles. Order now and elevate your system’s power connectivity.
Buy Molex 39303035 now and experience unmatched reliability and power transfer efficiency for your electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 39303035?
You can click on the BUY or RFQ button to purchase 39303035 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39303035?
You can download the 39303035 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39303035?
MOLEX
