MOLEX 2064600032 Micro-Fit+ Crimp Terminal

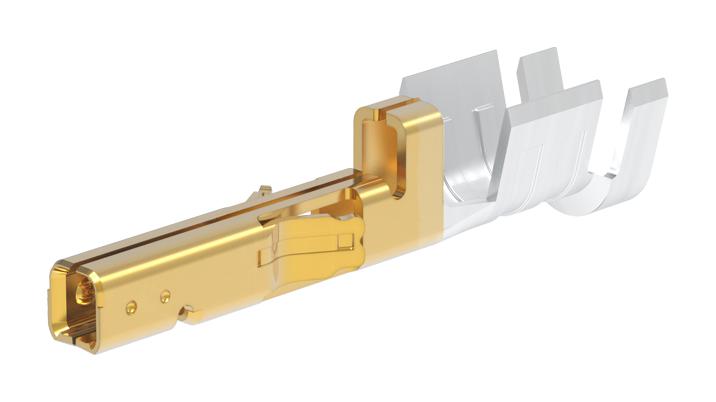

The MOLEX 206460-0032 is a Micro-Fit+ crimp terminal, a crucial component within the Micro-Fit+ Connector System. Designed for robust wire-to-board connections, this terminal is ideal for applications requiring reliable power transmission. It features a high copper alloy construction with gold plating for superior conductivity and corrosion resistance. The terminal is rated for a maximum current of 12.5A and a voltage of 600V AC (RMS)/DC, making it suitable for a wide range of industrial and commercial applications. Its durable design ensures up to 200 mating cycles, guaranteeing long-term performance.
MOLEX 2064600032 Micro-Fit+ Crimp Terminal Specifications:
- Series: 206460
- Application: Wire-to-Board
- Gender: Female
- Material - Metal: High Copper Alloy
- Material - Plating: Gold, Matte Tin
- Mating Material - Plating: Gold
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm
- Wire Size AWG: 18
- Wire Size mm²: 0.82
- Current - Maximum per Contact: 12.5A
- Voltage - Maximum: 600V AC (RMS)/DC
- Durability (mating cycles max): 200
- Net Weight: 0.069/g
- Packaging Type: Reel
Buy the 206460-0032 MOLEX Micro-Fit+ Crimp Terminal | myMectronic
Purchase the MOLEX 206460-0032 Micro-Fit+ Crimp Terminal securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2064600032?
You can click on the BUY or RFQ button to purchase 2064600032 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2064600032?
You can download the 2064600032 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2064600032?
MOLEX
