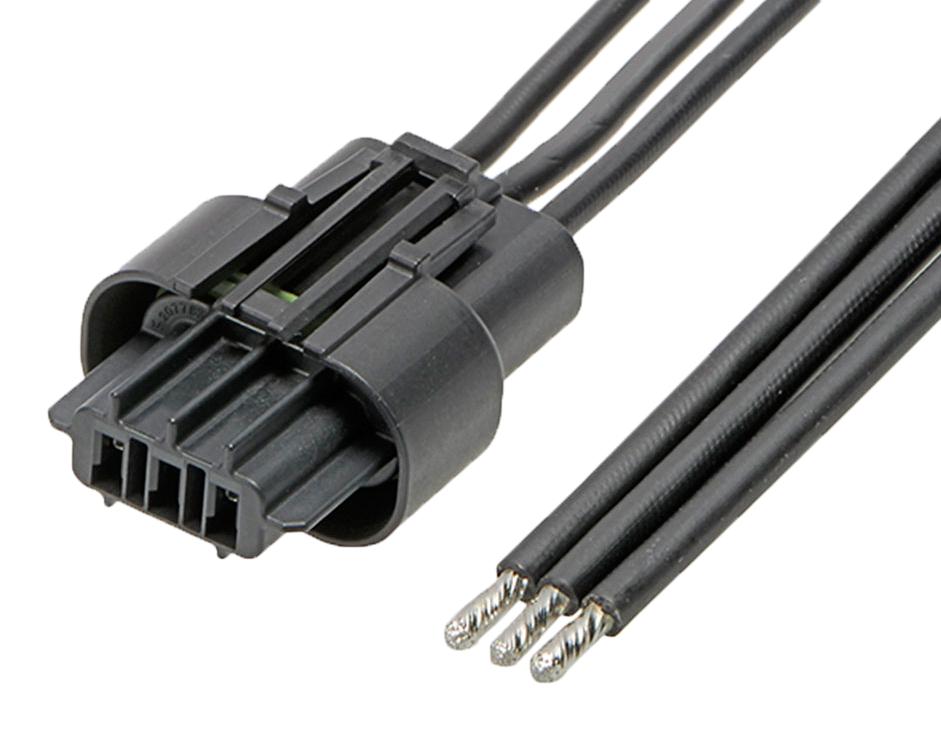

MOLEX 2166211032 Sealed Wire Connector
The Squba 3.60mm pitch sealed wire-to-wire connector system features a compact, IP67-rated design ensuring reliable power delivery up to 14.0A in confined spaces. It includes a female-to-pigtail cable assembly, low-profile latch to prevent wire damage, and sealed components resistant to dust and water ingress. Suitable for consumer, commercial, and industrial applications, it has a nylon housing, copper alloy contacts, rated for 600V, and withstands 25 connection cycles. UL and CSA certified, it provides durable and secure electrical connections for demanding environments.
MOLEX 2166211032 Sealed Wire Connector Specifications:
- Pitch: 3.60mm
- Current - Maximum per Contact: 14.0A
- Voltage - Maximum: 600V
- Material - Metal: Copper Alloy
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Number of Circuits: 3
- Cable Length: 300.00mm
- Dimensions: Compact size with sealed body, suitable for space-constrained applications
- Seam: Not specified
- Certification: UL 11028, CSA Certified
- IP Rating: IP67 for dust and water ingress protection
- Durability: 25 mating cycles
Buy the Buy Molex Squba 3.60mm Pitch Sealed Wire-to-Wire Connector Part Number 2166211032 Online
Purchase the Molex Sealed Wire Connector today to ensure reliable, waterproof electrical connections for harsh environments. Perfect for industrial, vehicle, and consumer applications, this compact connector features IP67 sealing, a robust nylon housing, and copper alloy contacts rated for 600V and 14A. Its low-profile design includes a positive latch to prevent damage and snagging, making installation easy and secure. Certified by UL and CSA, it guarantees durability and performance in demanding conditions. Order now for long-lasting, dependable power delivery.
Get Molex 2166211032 today—designed for sealed power connections and reliable performance in industrial and automotive applications.
Frequently Asked Questions
Where can I buy MOLEX 2166211032?
You can click on the BUY or RFQ button to purchase 2166211032 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2166211032?
You can download the 2166211032 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2166211032?
MOLEX
