MOLEX 2068320601 Power Connector
The Micro-Fit+ Vertical Header offers a 3.00mm pitch with dual-row configuration, 6 circuits, and tin over nickel plating for reliable electrical performance. Designed for power and wire-to-board applications, it features UL 94V-0 flame rating, glow-wire capability, and high durability with up to 25 mating cycles. The compact design includes a 3.18mm PCB tail length, suitable for high-current applications up to 12.5A and 600V AC/DC. Made from liquid crystal polymer with high copper alloy contacts, it provides excellent thermal stability from -40°C to +105°C. The component is classified as halogen-free and RoHS compliant.
MOLEX 2068320601 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 6
- Max Circuits: 6
- Material - Metal: High Copper Alloy
- Material - Plating: Tin over Nickel
- Material - Resin: Liquid Crystal Polymer
- Color - Resin: Black
- Durability: 25 mating cycles
- Temperature Range: -40°C to +105°C
- Voltage - Max: 600V AC/DC
- Current - Max per Contact: 12.5A
- PCB Tail Length: 3.18mm
- Termination Style: Through Hole
- Glow-Wire Capable: Yes
- Flammability: UL 94V-0
- Halogen-Free: Yes
- RoHS Compliant: Yes

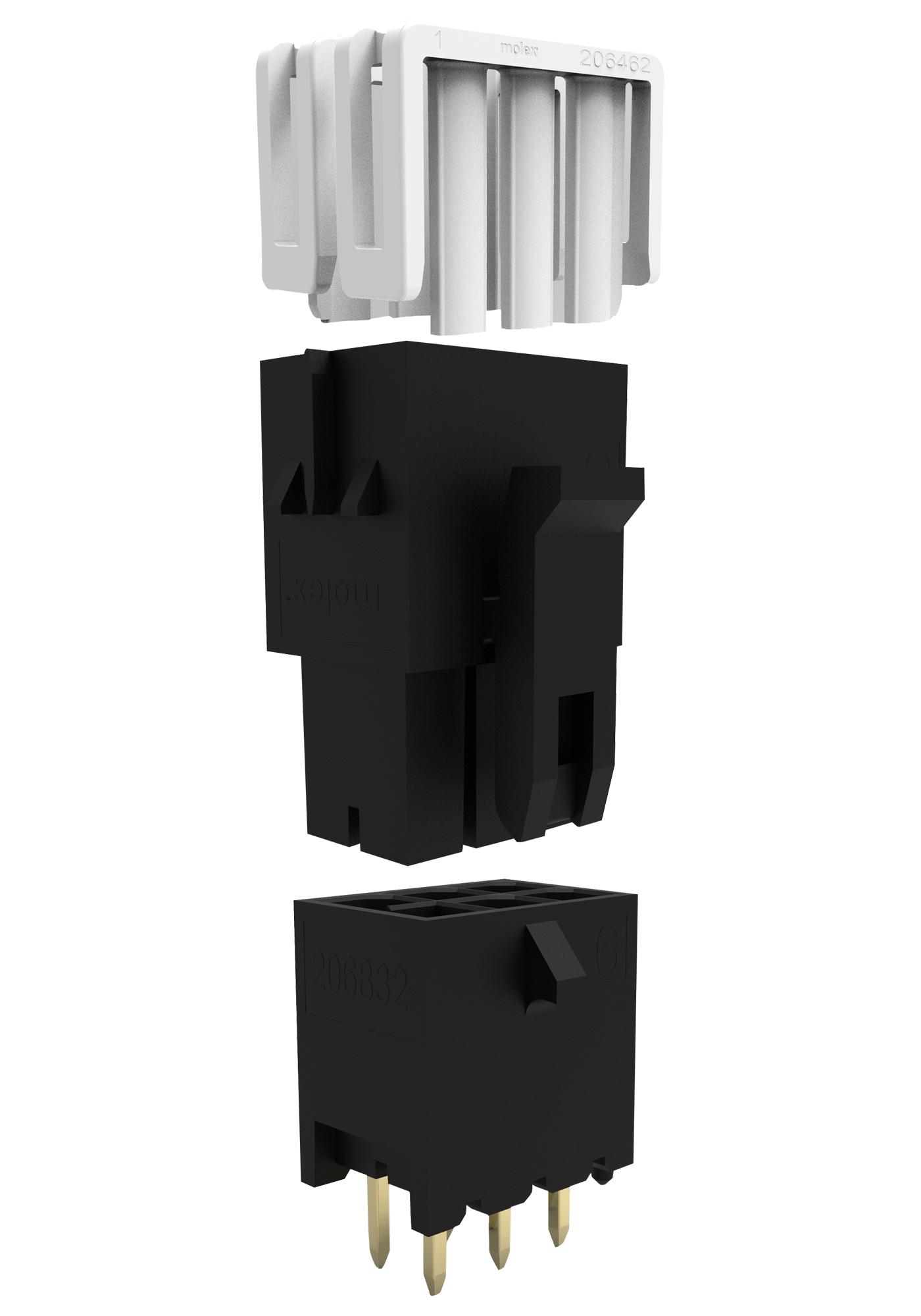

Buy the Molex Series Micro-Fit Power: 2068320601
Secure your electronic projects with the Molex Micro-Fit power connector. Designed for high-current, power, and wire-to-board applications, it offers excellent durability with up to 25 mating cycles, UL 94V-0 flame rating, and RoHS compliance. Its 3.00mm pitch, 6 circuits, and tin over nickel plating ensure reliable performance in demanding environments. The compact, shrouded design features a 3.18mm PCB tail length, suitable for a wide range of industrial, consumer, and automation systems. Perfect for engineers seeking quality and durability.
Get Molex 2068320601 today—built for power and reliable connections in high-current electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 2068320601?
You can click on the BUY or RFQ button to purchase 2068320601 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2068320601?
You can download the 2068320601 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2068320601?
MOLEX
