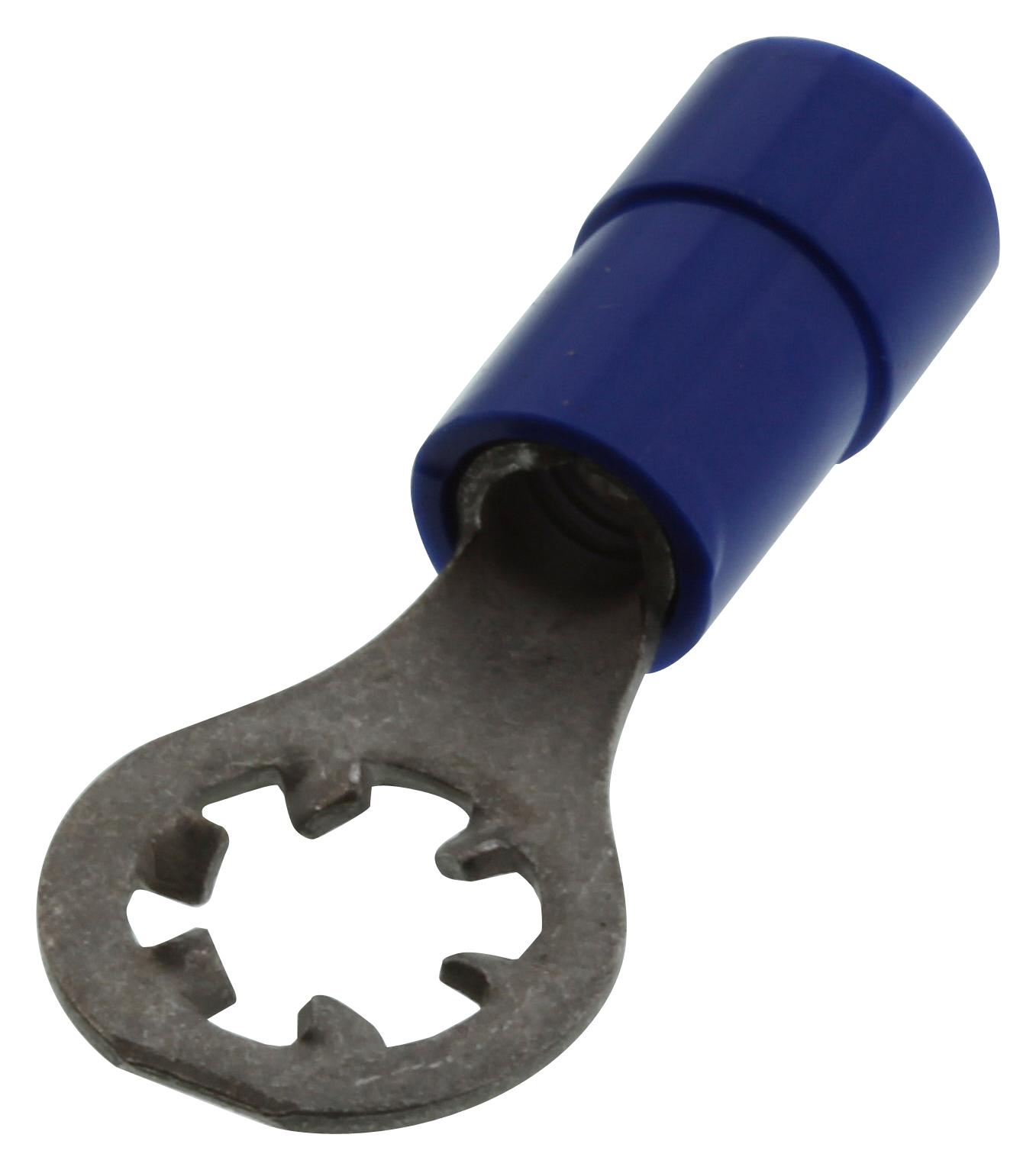

MOLEX 190750015 InsulKrimp Ring Tongue Terminal
The MOLEX 19075-0015 InsulKrimp Star Ring Tongue Terminal is a solderless termination solution for connecting wires to studs. Designed for 14-16 AWG wire and an 8 (M4) stud size, this terminal provides a secure and reliable connection in various industrial applications. It's part of the MOLEX 19075 series, known for its quality and performance. The terminal's closed barrel design and PVC insulation contribute to its durability and electrical insulation properties. It is RoHS compliant and halogen-free, meeting environmental standards.
MOLEX 190750015 InsulKrimp Ring Tongue Terminal Specifications:
- Overview: Solderless Terminals
- Description: InsulKrimp Star Ring Tongue Terminal for 14-16 AWG Wire, Stud Size 8 (M4)
- Agency Certification: CSA LR18689, UL E32244
- EU ELV: Not Relevant
- Product Family: Ring and Spade Terminals
- EU RoHS: Not Reviewed
- Series: 19075
- Crimp Quality Equipment: Yes
- REACH SVHC: Not Contained Per ED/61/2018 (27 June 2018)
- Product Name: InsulKrimp
- Type: Ring
- Halogen-Free: Low-Halogen
- Flammability: 94V-0
- Insulation: PVC
- RoHS Phthalates: Not Contained
- Material - Plating: Mating Tin
- Net Weight: 0.717/g
- Packaging Type: Bag
- Stud Size: 8 (M4)
- Termination Interface: Style Crimp or Compression
- Wire Insulation Diameter: 4.45mm
- Wire Size: AWG 14, 16
- Engineering Number: SRB-229-08X
- China ROHS: Green Image
Buy the 19075-0015 MOLEX InsulKrimp Ring Tongue Terminal | myMectronic
Purchase the MOLEX 19075-0015 InsulKrimp Ring Tongue Terminal securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 190750015?
You can click on the BUY or RFQ button to purchase 190750015 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190750015?
You can download the 190750015 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190750015?
MOLEX
