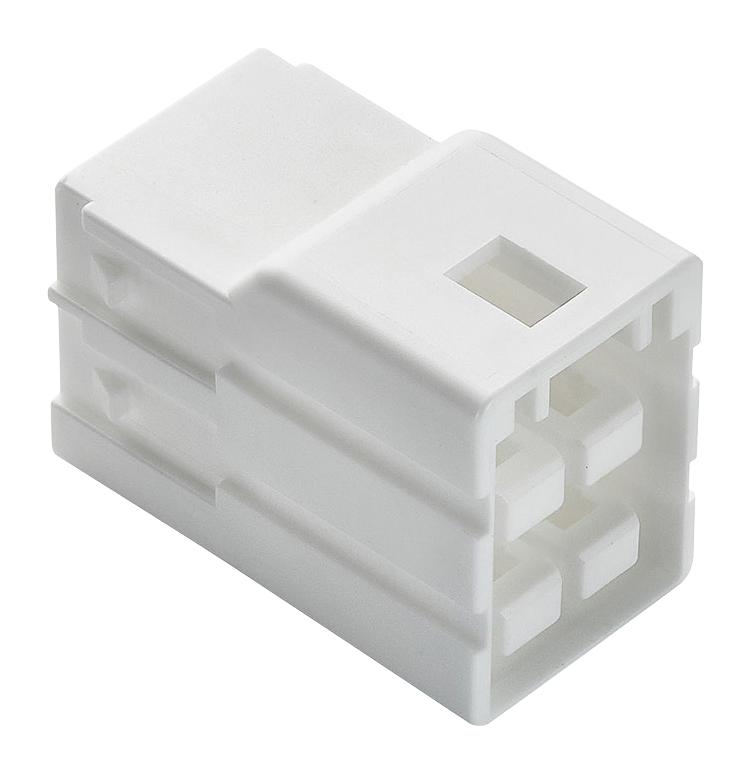

MOLEX 2069962411 Wire-to-Wire Connector
The CP-4.5 series receptacle housing is a glow-wire capable and halogen-free wire-to-wire connector designed for reliable and safe electronic connections in consumer, industrial, and power applications. Featuring a 4.50mm pitch, these connectors offer high locking strength with fool-proof keyed, color-coded, and polarized mating, reducing installation errors and operational costs. The design includes raised housing blocks on adjacent sides to prevent wire snagging under the latch and a positive-lock latch mechanism to ensure complete mating. Made from UL94V-0 rated nylon, the connectors are environmentally friendly and meet global safety standards. They support a maximum voltage of 600V (AC/RMS or DC), a maximum current of 2.0 to 10.0A, and are rated for up to 30 mating cycles. Operating temperature ranges from -40°C to +120°C.
MOLEX 2069962411 Wire-to-Wire Connector Specifications:
- Pitch: 4.50mm
- Voltage Rating: 600V (AC/RMS or DC)
- Current Rating: 2.0 to 10.0A
- Material: UL94V-0 Nylon
- Temperature Range: -40°C to +120°C
- Number of Mating Cycles: Up to 30
- Color: Natural (White)
- Gender: Receptacle
- Locking Mechanism: Positive lock
- Polarized: Yes
- Glow-wire Capable: Yes
- Halogen-Free: Yes
- RoHS Compliant: Yes
- Packaging: Bag
- Net Weight: 2.400g
- Applications: Consumer electronics, industrial equipment, power systems
Buy the Molex 2069962411 – Reliable Connector for Industrial Applications
Purchase the Molex series2069962411 wire-to-wire connector online today and benefit from its halogen-free, glow-wire capable design, ensuring safe and reliable electrical connections. With a 4.50mm pitch, high locking strength, and polarized locking mechanism, it reduces installation errors and operational costs. Made from UL94V-0 nylon, it supports voltage up to 600V and currents from 2.0 to 10.0A, rated for up to 30 mating cycles. Ideal for consumer, industrial, and power applications, it offers superior safety and environmental compatibility, making it the perfect choice for your electronic projects.
Order your Molex Series2069962411 connector today and ensure robust, safe, and environmentally friendly electronic connections for your industrial projects.
