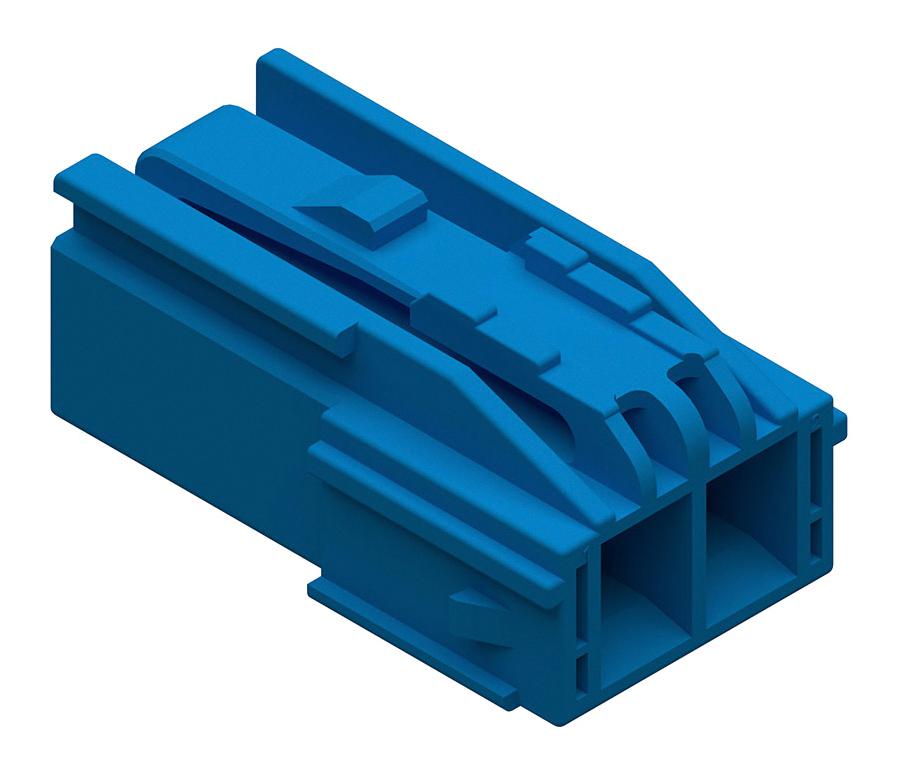

MOLEX 2069972201 Wire-to-Wire Connector
The CP-4.5 series wire-to-wire connectors are glow-wire capable, halogen-free, and designed for reliable electrical connections across consumer, industrial, and power applications. They feature a robust locking mechanism, keyed, color-coded, and polarized for easy mating, with integral beam supports to prevent wire snagging. The connectors include polarization keys, an audible click for proper mating, latch protection, and secure terminal retention. Constructed with UL94V-0 nylon, supporting up to 600V and currents from 2.0A to 10.0A, rated for 30 mating cycles, and operating from -40°C to +120°C, ensuring durability in demanding environments.
MOLEX 2069972201 Wire-to-Wire Connector Specifications:
- Series: CP-4.5
- Pitch: 4.50mm
- Number of Circuits: 2
- Color - Resin: Blue
- Gender: Plug
- Glow-Wire Capable: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Maximum Voltage: 600V AC/DC
- Current Ratings: 2.0A to 10.0A
- Temperature Range: -40°C to +120°C
- Rated Mating Cycles: 30
- Physical Dimensions: Housing with integral beam supports at both ends
- Certifications: UL94V-0
- Application Suitability: Consumer, industrial, and power applications
Buy the Molex 2069972201 – Reliable Power and Signal Connectors for Industrial Applications
Purchase the Molex 2069972201 wire-to-wire connector now to ensure secure, reliable, and high-performance electrical connections in industrial, consumer, and power applications. Designed with integral beam supports, polarizations, and a robust locking mechanism, this connector features UL94V-0 nylon housing capable of supporting up to 600V and currents up to 10A. Operating efficiently across a wide temperature range from -40°C to +120°C, it is rated for 30 mating cycles, making it an ideal choice for demanding environments. Buy online for fast delivery and dependable performance.
Get Molex 2069972201 today—built for reliable electrical connections in demanding industrial and power environments.
Frequently Asked Questions
Where can I buy MOLEX 2069972201?
You can click on the BUY or RFQ button to purchase 2069972201 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2069972201?
You can download the 2069972201 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2069972201?
MOLEX
