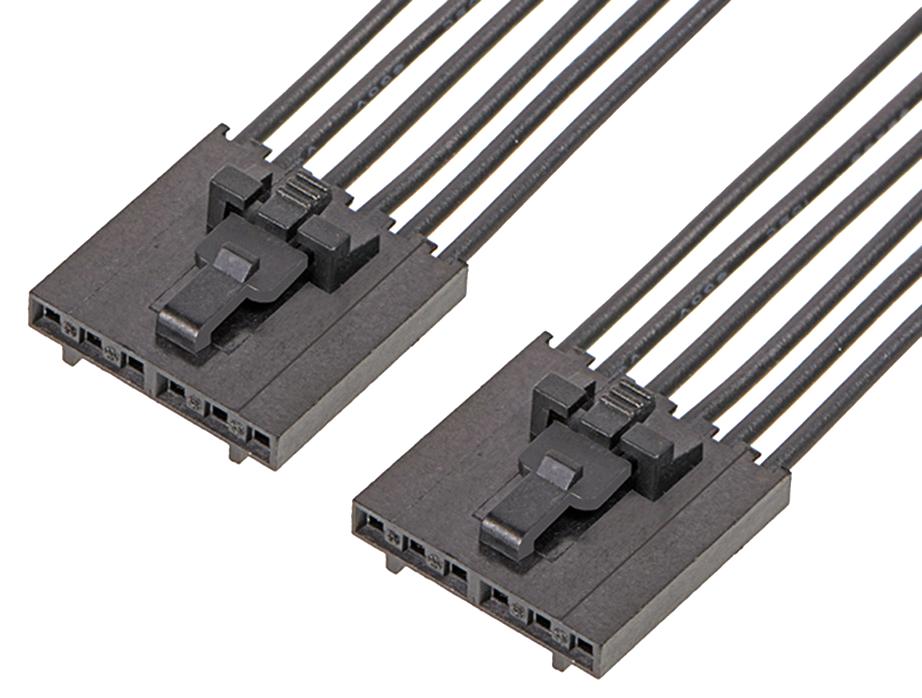

MOLEX 2162701061 Signal Cable Assembly
The off-the-shelf stackable linear positive lock discrete cable assemblies are designed for versatility in prototyping and mass production. They support various termination options including crimp, FFC, and IDT, and feature dual contact points for redundant electrical paths, enhancing performance and reliability. The connector has a lock to prevent disconnection in high-vibration environments. Made of polyester alloy with phosphor bronze contacts, tin plating, and underplating, they operate up to 600V AC/DC and 3A current, withstanding temperatures from -40°C to +105°C and up to 25 mating cycles, suitable for multiple industrial and consumer applications.
MOLEX 2162701061 Signal Cable Assembly Specifications:
- Series: 216270
- Application: Signal, Wire-to-Board, Wire-to-Wire
- Assembly Configuration: Connector to Connector
- Cable Length: 100.00mm
- Circuits (Loaded): 6
- Color - Resin: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 5.317 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 25 mating cycles
- Standards: UL 11028, CSA LR19980
- RoHS Compliant: Yes
- Halogen-Free: No
Buy the Molex Series 216270 Signal Cable Assembly: 2162701061
Enhance your electronic projects with Molex signal cable assemblies featuring positive lock, dual contact points, and robust insulation. Designed for both prototyping and mass production, these assemblies support up to 600V and 3A for versatile industrial, automotive, and consumer applications. Made with durable polyester alloy housings and phosphor bronze contacts with tin plating, they ensure reliable connections in harsh environments. Easy to assemble with option for crimp, FFC, or IDT terminations, and capable of handling 25 mating cycles, they are a perfect choice for dependable, high-performance wiring solutions.
Buy Molex 2162701061 high-quality stackable cable assembly now and enhance your electronic connections with reliable, vibration-resistant performance.
Frequently Asked Questions
Where can I buy MOLEX 2162701061?
You can click on the BUY or RFQ button to purchase 2162701061 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701061?
You can download the 2162701061 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701061?
MOLEX
