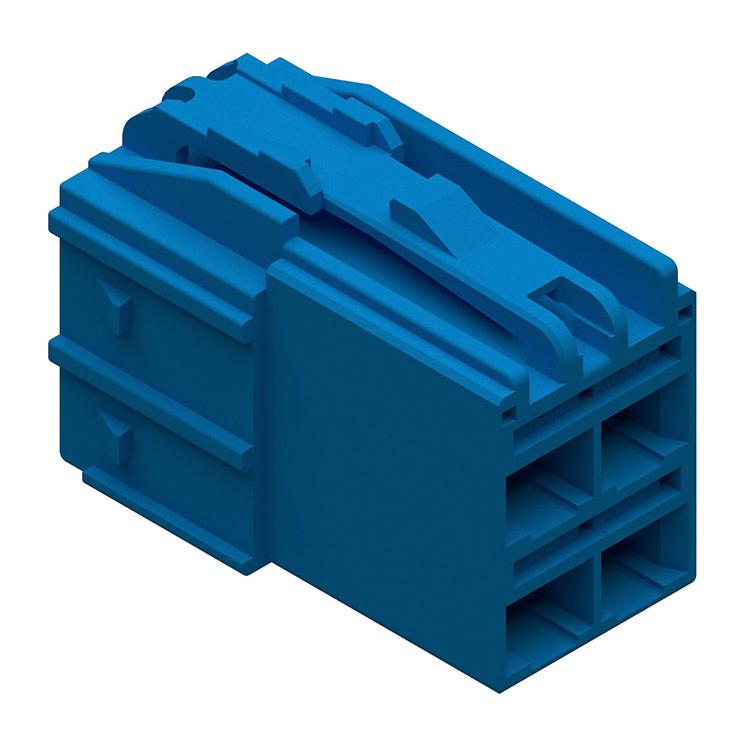

MOLEX 2069972401 Wire Connector
The CP-4.5 series wire-to-wire connectors are glow-wire capable and halogen free, designed with a robust locking mechanism and features such as fool-proof keyed, color-coded, and polarized mating for ease of use and reduced inventory. They include integral beam supports on both ends of the housing to prevent wire snagging, and polarization keys on housing ribs to prevent mis-mating and short circuits. These connectors meet global safety standards with a maximum voltage of 600V AC/DC, and are rated for current from 2.0 to 10.0A. The housing is made of durable, UL94V-0 rated nylon with retainer components, supporting up to 30 mating cycles. Operating temperature ranges from -40°C to +120°C, making them suitable for a wide range of industrial and consumer applications. Variations in housing colors facilitate quick identification during assembly and repair.
MOLEX 2069972401 Wire Connector Specifications:
- Voltage Rating: 600V AC/DC
- Current Rating: 2.0 to 10.0A
- Material: UL94V-0 Nylon
- Temperature Range: -40°C to +120°C
- Number of Mating Cycles: Up to 30
- Housing Color: Blue (color-coded for easy identification)
- Max Circuits: 4
- Pitch - Mating Interface: 4.50mm
- Connectors Type: Wire-to-Wire
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Glow-Wire Capable: Yes
- Locking Mechanism: Robust with integral beam supports
- Gender: Plug housing
- Application: Industrial and consumer electronics
- Certification: Meets global safety standards
Buy the Buy Molex Connector Part Number 2069972401 Online
Secure your assembly with Molex wire connector part number 2069972401, a glow-wire capable, halogen-free solution rated for 600V and up to 10A. Featuring a robust locking mechanism, polarized and keyed housing, and integral beam supports, this connector ensures safe, reliable connections. Its durable nylon housing withstands temperatures from -40°C to +120°C and supports up to 30 mating cycles. Ideal for industrial and consumer electronics, it simplifies installation with color-coded housing for easy identification. Reliable, safe, and user-friendly, it’s the perfect choice for versatile wiring needs.
Buy Molex 2069972401 now and experience reliable locking, polarized design, and high-temperature durability for your electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 2069972401?
You can click on the BUY or RFQ button to purchase 2069972401 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2069972401?
You can download the 2069972401 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2069972401?
MOLEX
