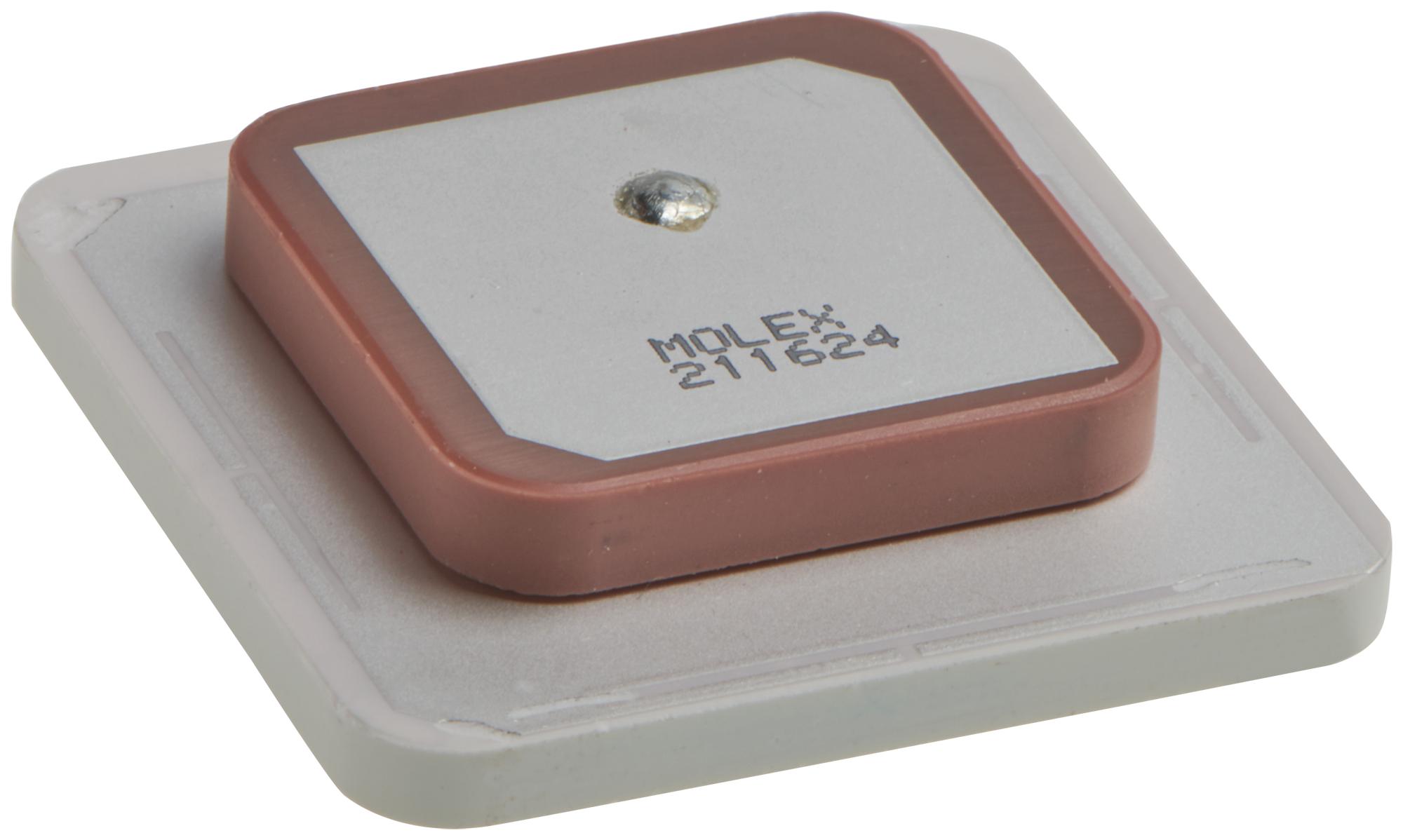

MOLEX 2116240001 GNSS Antenna
This GNSS antenna is designed for GPS L1/L5 and Glonass signals, featuring a 36mm stacked patch single feed design. It is an omnidirectional surface mount device with right-handed circular polarization, ideal for precise satellite communication. Its compact size of 36mm ensures easy installation in various applications, providing high efficiency (>70%) at key frequencies like 1176 MHz, 1575 MHz, and 1602 MHz. The antenna demonstrates excellent return loss below -10 dB and peak gain up to 4.5 dBi, offering reliable signal reception for navigation systems.
MOLEX 2116240001 GNSS Antenna Specifications:
- Physical Dimensions: 36.00mm width, 7.00mm thickness
- Mounting Style: Adhesive, Surface Mount
- Cable Length: 36.00mm
- Polarization: Right Handed Circular
- Radiation Pattern: Omnidirectional
- Peak Gain: 2.1 @ 1176 MHz, 4.2 @ 1602 MHz, 4.5 @ 1575 MHz
- Retum Loss: <-10 dB
- Total Efficiency: >60% @ 1176 MHz, >70% @ 1602 MHz, >75% @ 1575 MHz
- Band Frequencies: 1176-1181 MHz, 1570-1580 MHz, 1607-1597 MHz
- Material: Not specified but RoHS compliant and low-halogen
Buy the Molex Series GNSS Antenna: 2116240001
Order the Molex GNSS Antenna today for high-performance GPS and Glonass signal reception. This omnidirectional surface mount antenna with 36mm size ensures excellent efficiency and circular polarization, ideal for navigation systems. Its compact design allows versatile installation, providing stable, accurate positioning data with peak gains up to 4.5 dBi. Perfect for applications requiring dependable satellite communication, this antenna is RoHS compliant, halogen-free, and built for durability. Buy now for reliable, clear signals in your navigation projects.
Get Molex 2116240001 today—built for precise satellite navigation and reliable signals.
