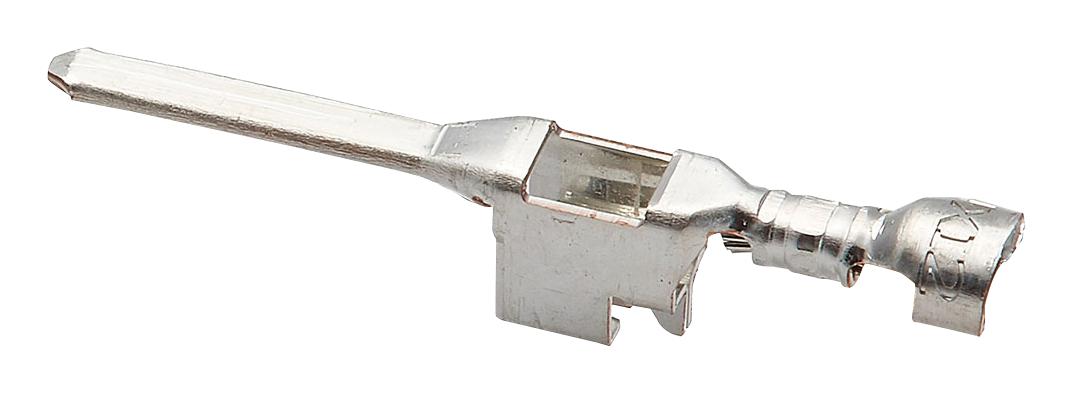

MOLEX 2050338000 CP-6.5 Crimp Terminal
The MOLEX 205033-8000 is a CP-6.5 wire-to-wire crimp terminal, specifically engineered for robust power transmission in wire-to-wire connections. This male terminal is constructed with a copper alloy core and features tin plating on both the mating and termination interfaces, ensuring reliable electrical contact and corrosion resistance. It is designed to accommodate wire gauges ranging from 16 to 20 AWG, offering versatility in various applications. Refer to the product specification for detailed current rating information based on circuit size and wire gauge.
MOLEX 2050338000 CP-6.5 Crimp Terminal Specifications:
- product_family: Crimp Terminals
- series: 205033
- application: Power, Wire-to-Wire
- durability_mating_cycles: 30
- gender: Male
- material_metal: Copper Alloy
- material_plating_mating: Tin
- material_plating_termination: Tin
- net_weight_g: 0.850
- packaging_type: Reel
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 2.00-3.30
- wire_size_AWG: 16, 18, 20
- wire_size_mm2: N/A
- current_maximum_per_contact_a: 12.5
- voltage_maximum_ac_rms: 600V
- voltage_maximum_dc: 600V
- datasheet_order_no: 987651-1601
