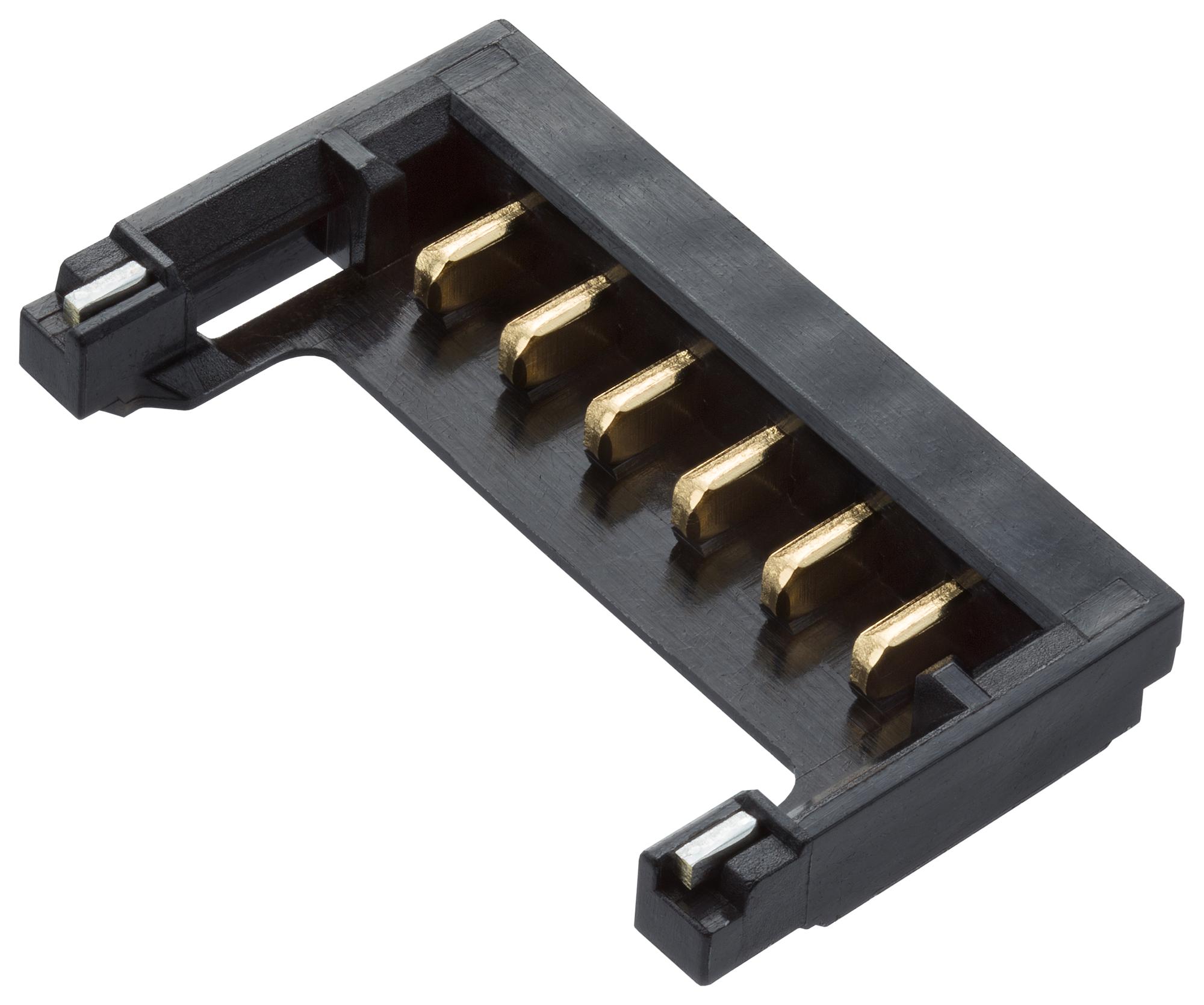

MOLEX 2121340006 Pico-EZmate PCB Header
The MOLEX 212134-0006 is a Pico-EZmate PCB header, part of the 212134 series, designed for wire-to-board connectivity in compact electronic applications. This header features a 1.00mm pitch, a single-row configuration, and gold (Au) plating for enhanced conductivity and durability. It supports up to 6 circuits and is polarized to both the mating part and the PCB, ensuring proper alignment. The header is vertically oriented and includes PCB retention features for secure mounting. Operating within a temperature range of -40°C to +105°C, it is suitable for a variety of industrial and consumer electronics applications.
MOLEX 2121340006 Pico-EZmate PCB Header Specifications:
- status: Active
- overview: Pico-EZmate and Pico-EZmate Slim Wire-to-Board Connector Systems
- description: Pico-EZmate Plus PCB Header, 1.00mm Pitch, Single Row, Gold (Au) Plating, 6 Circuits
- circuits_loaded: 6
- circuits_maximum: 6
- color_resin: Black
- glow_wire_capable: No
- guide_to_mating_part: None
- lock_to_mating_part: Yes
- material_metal: Copper Alloy
- material_plating: Gold
- material_resin: Polyamide
- net_weight: 36.870/mg
- number_of_rows: 1
- orientation: Vertical
- pcb_locator: No
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 1.00mm
- plating_min_mating: 0.100µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- smc_compatible: Yes
- operating_temperature_range: -40°C to +105°C
- termination_interface_style: Surface Mount
- current_max_per_contact: 2.8A
- voltage_max: 50V AC (RMS)/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
