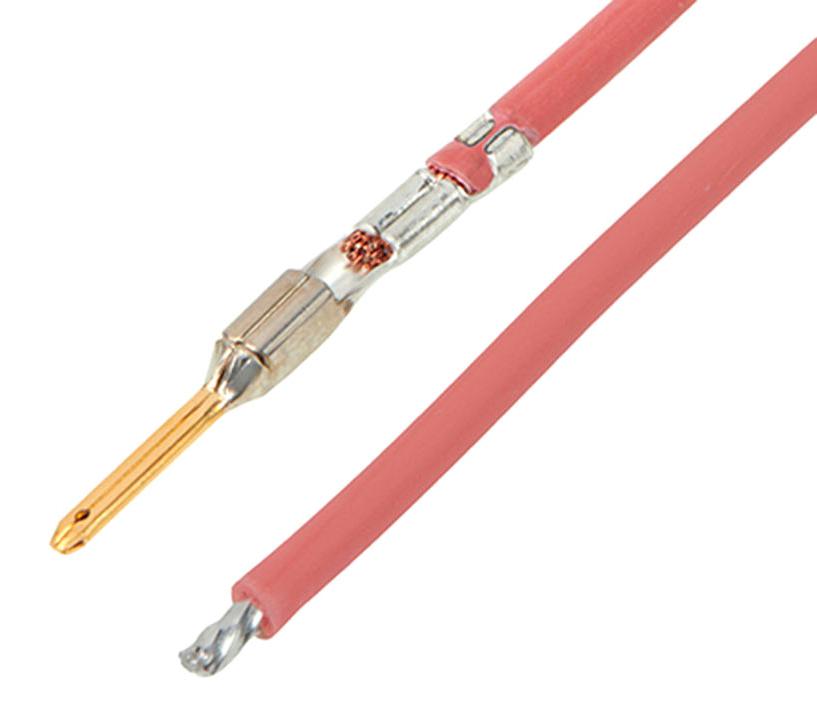

MOLEX 2163032215 MX150 Pre-Crimped Lead
The MOLEX 216303-2215 is an off-the-shelf pre-crimped lead assembly, specifically designed for applications requiring a ready-to-use connection. This lead connects MX150 terminals to a pigtail, offering a convenient solution for power, wire-to-board, and wire-to-wire configurations. The gold plating ensures reliable electrical contact, while the 16 AWG wire gauge provides adequate current carrying capacity. It is RoHS compliant and suitable for use in various industrial and commercial settings where a pre-terminated connection is desired.
MOLEX 2163032215 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: MX150 Terminal-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: High Performance Alloy (HPA)
- plating_mating: Gold
- net_weight: 7.822/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 16
- wire_cable_type: TXL
- current_maximum_per_contact: Contact Molex
- voltage_maximum: 14V DC
- upc: 195842071551
- series: 216303 Series
- use_with_housing: MX150 Dual Row Housing 33482, MX150 Single Row Housing 33481, MX150 Hybrid Housing 33486
- drawing_number: 2163031211-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free: Low-Halogen
- rohs_phthalates: Not Contained
