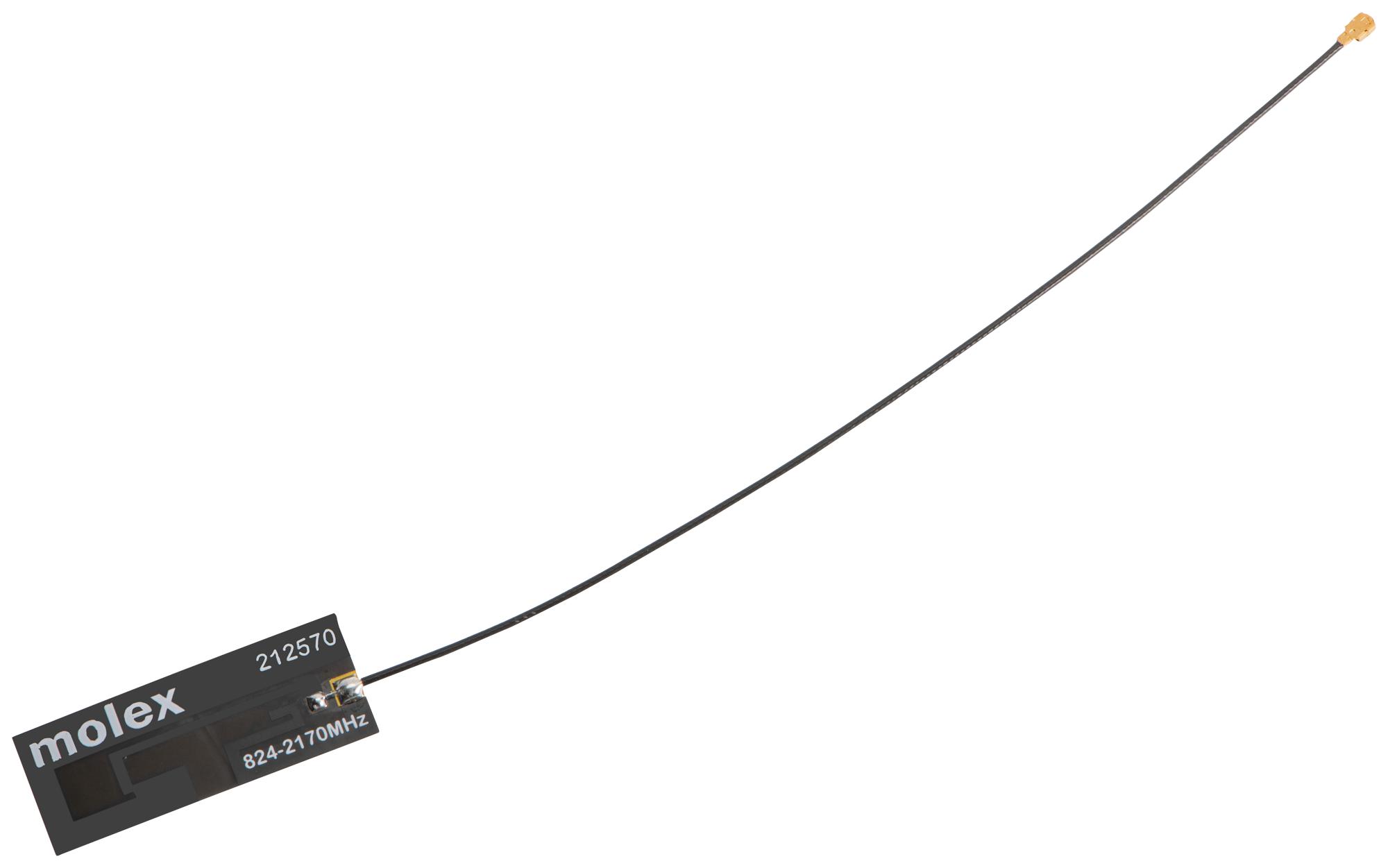

MOLEX 2125700100 Side-Fed Cellular Flexible Antenna
The MOLEX 2125700100 is a side-fed cellular flexible antenna ideal for LTE cellular applications. This antenna boasts a broad frequency range of 824MHz to 2170MHz, ensuring compatibility with various cellular networks. It includes a 100mm cable and is designed to be compatible with U.FL/I-PEX MHF connectors, simplifying integration into diverse devices. Its flexible design allows for versatile mounting options, while its adhesive backing provides secure attachment. This antenna is a reliable solution for wireless communication systems.
MOLEX 2125700100 Side-Fed Cellular Flexible Antenna Specifications:
- product_family: Antennas
- series: 212570
- component_type: Flexible Antenna with Cable
- datasheet_order_no: 987651-7811
- function: Signal
- mates_with: 734120110 Microcoaxial RF, 50 Ohm
- overview: LTE Cellular Antennas
- protocol: Cellular
- upc: 193264168675
- cable_length: 100.00mm
- length: 40.40mm
- mounting_style: Adhesive
- net_weight: 0.744/g
- packaging_type: PET Film
- polarization: Linear
- radiation_pattern: Omnidirectional
- thickness: 0.10mm
- width: 15.40mm
- band_1_f_end_mhz: 960
- band_1_f_start_mhz: 824
- band_2_f_end_mhz: 2170
- band_2_f_start_mhz: 1710
- peak_gain_dbi: -0.45 @ 824 MHz, 1.76 @ 1710 MHz
- return_loss_db: < -3, < -4
- total_efficiency: >25% @ 824 MHz, >50% @ 1710 MHz
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per - ED/71/2019 (16 July 2019)
- halogen_free_status: Low-Halogen
