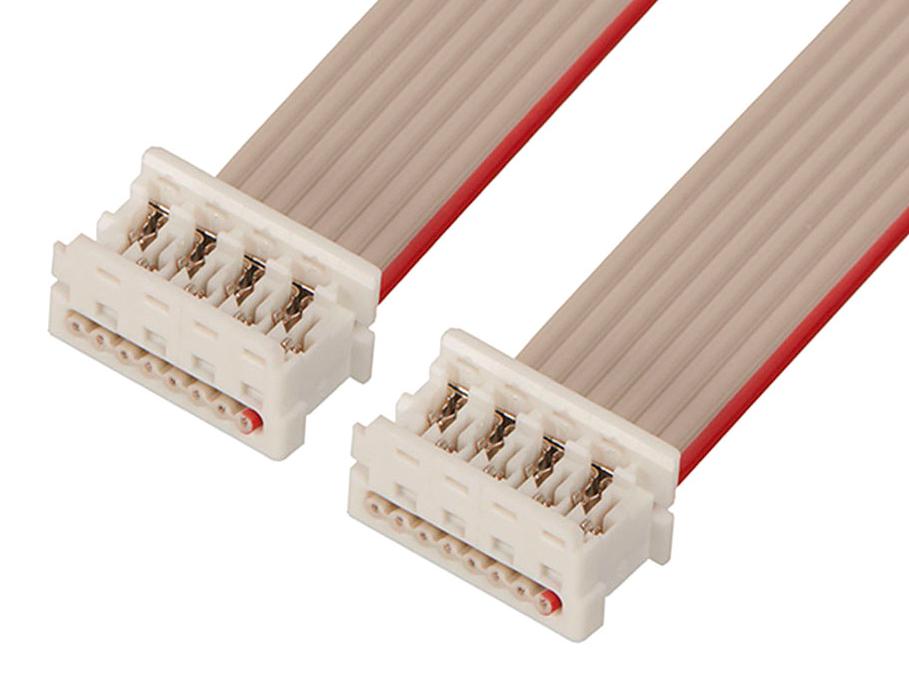

MOLEX 923150808 Ribbon Cable Assembly
The Picoflex ribbon cable assembly provides a reliable, versatile connection suitable for consumer electronics, industrial automation, medical devices, and energy systems. It features a polarized connector to prevent mis-mating, a one-piece housing for secure cable retention, and dual-beam contacts for four contact points per circuit, ensuring high reliability. Designed with final seat locking mechanisms and termination windows for visual inspection, it includes optional gold plating for durability. The assembly accommodates daisy chaining via insulation displacement termination, with UL and CSA certifications, rated for 1.2A and 250V, operating from -40°C to +105°C, with a 1.27mm pitch and 28 AWG wire gauge.
MOLEX 923150808 Ribbon Cable Assembly Specifications:
- Cable Length: 80.00mm
- Circuits (Loaded): 8
- Color - Resin: Natural
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 1.27mm
- Wire Size AWG: 28
- Voltage - Maximum: 250V
- Current - Maximum per Contact: 1.2A
- Temperature Rating: -40°C to +105°C
- Pitch - Mating Interface: 1.27mm
- Connector Type: Picoflex Ribbon-Cable
- Housing Material: Polyester
- Mating Cycles: Minimum 30
- Rated for high-vibration environments
- Includes final seat locking and termination windows
- Compatible with Picoflex PF-50 Header series
- RoHS and UL/CSA certified
- Rated for secure and reliable multi-application use
Buy the Molex Series Picoflex Ribbon Cable Assembly: 923150808
Enhance your electronic and automation projects with the Molex Ribbon Cable Assembly. Designed for durability and compatibility, it features polarized connectors, dual-beam contacts, and secure locking mechanisms. The assembly ensures reliable connections for consumer electronics, industrial automation, medical devices, and energy systems. With UL and CSA certifications, rated for 1.2A and 250V, and operating from -40°C to +105°C, it offers long-lasting performance. Easy to install with insulation displacement termination and a 1.27mm pitch, ideal for demanding industrial applications.
Get Molex 923150808 today—built for reliable performance in industrial automation and medical devices.
Frequently Asked Questions
Where can I buy MOLEX 923150808?
You can click on the BUY or RFQ button to purchase 923150808 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923150808?
You can download the 923150808 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923150808?
MOLEX
